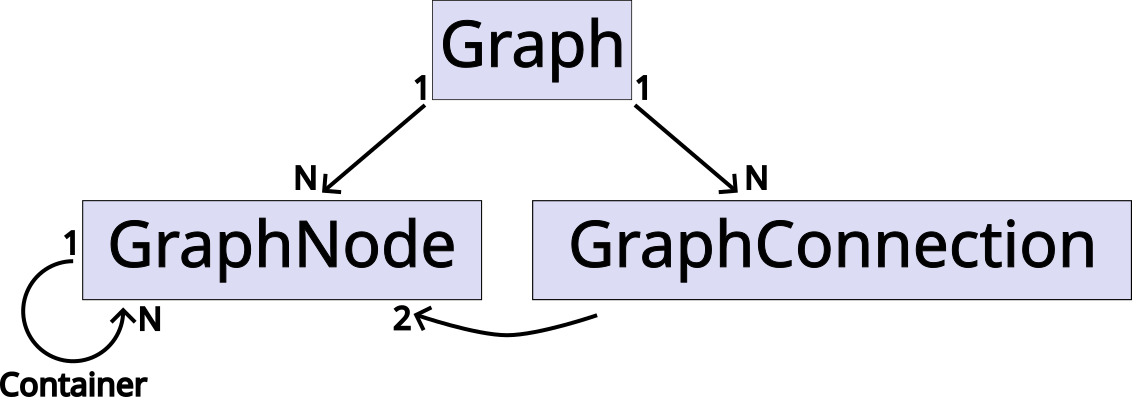

A graph represents the root widget for all Zest models and contains both edges and vertices. Both elements are added automatically to the graph when creating new instances of either GraphConnection (for edges) and GraphNode (for vertices), using the graph as constructor argument.

Vertices can either be simple nodes or subgraphs, which themselves can contain additional vertices.

Graph

Graph Viewer

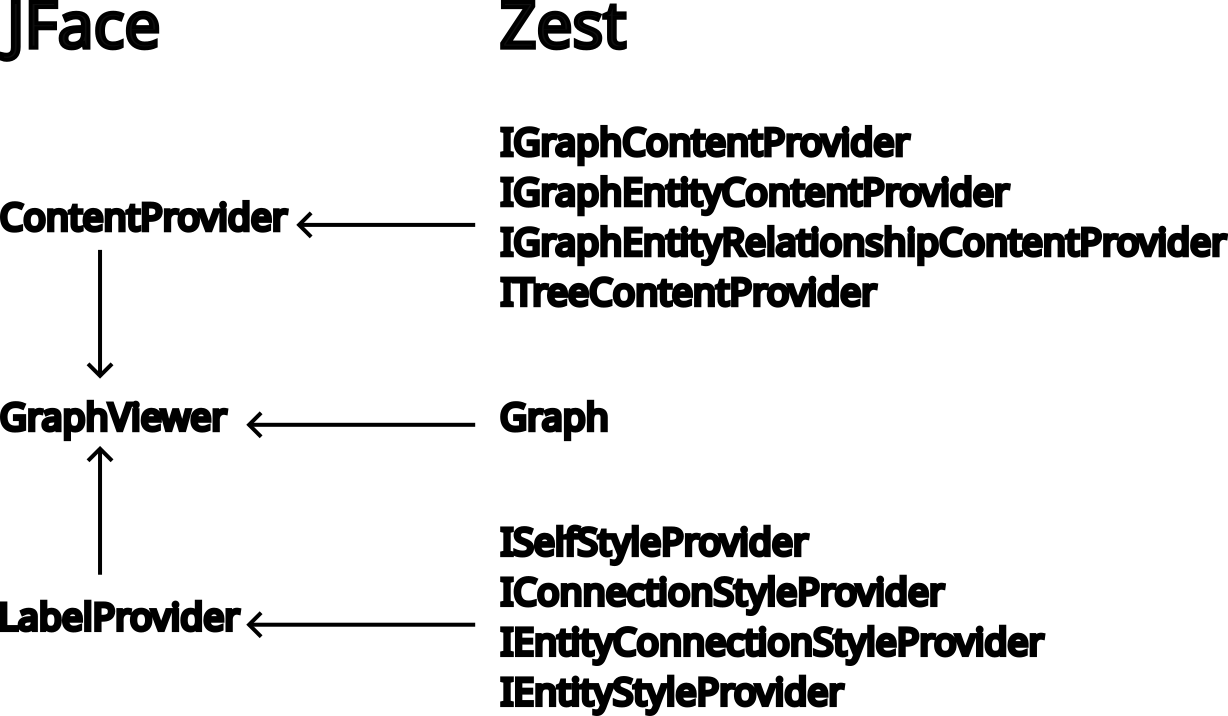

Alternatively, graphs can also be created using the JFace structured viewers. Edges and vertices are created by supplying a special ContentProvider and can be stylized by a special LabelProvider.

GraphViewer

Content Provider

The content provider may implement one (but not multiple) of the following interfaces:

  • IGraphEntityContentProvider for graphs based on vertices. This content provider returns all vertices contained by this graph and for each vertex, the vertices it is connected to.

  • IGraphEntityRelationshipContentProvider for graphs based on edges. This content provider returns all edges contained by this graph. The union of all source and destination vertices define the vertices contained by this graph.

  • IGraphContentProvider for graphs based on pairs of vertices. This content provider is similar to the IGraphEntityRelationshipContentProvider where each pair represents an edge between a source and destination vertex.

  • ITreeContentProvider, for hierarchical graphs. A vertex is only connected to its children, which themselves are represented as containers.

Additionally, the content provider may implement the INestedContentProvider interface (except the ITreeContentProvider) to support sub-graphs.

Label Provider

The label provider may implement one (but not multiple) of the following interfaces:

  • ISelfStyleProvider for generic customizations of both edges and vertices, such as dotted lines.

  • IConnectionStyleProvider (Edges only) for contributing details about an edge. Incompatible with IEntityConnectionStyleProvider.

  • IEntityConnectionStyleProvider (Edges only) for contributing details about an edge. Here the edge is described via the source and destination vertices. Incompatible with IConnectionStyleProvider

  • IEntityStyleProvider (Vertices only) for contributing details about a vertex.

Additionally, the label provider may implement the IFigureProvider interface to supply custom figures for the graph elements.

Graph Node

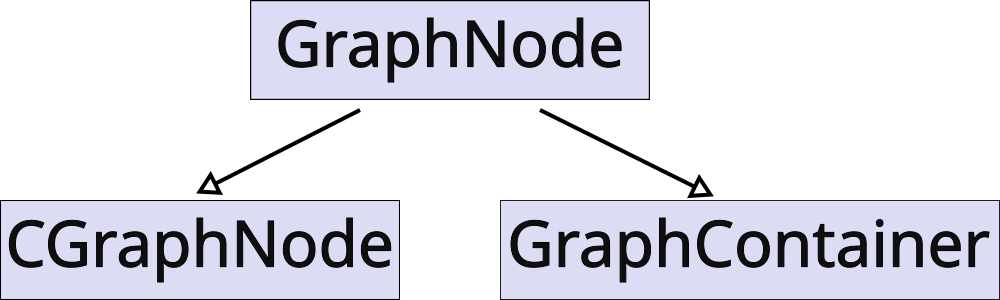

Each vertex is implemented by a GraphNode and backed by a _model figure for visualization. Available classes are:

  • GraphNode is the default implementation used for vertices where the attributes are defined by the widget.

  • CGraphNode is a custom implementation used for vertices where the attributes are defined by the underlying figure.

  • GraphContainer is the default implementation used to visualize subgraphs.

GraphNode

"Hide Node" Feature

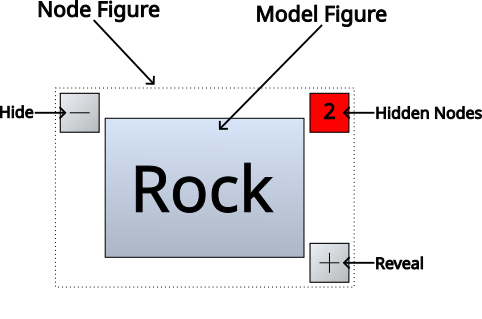

When the graph has been created with the "hide node" feature enabled, the model figure is contained by a node figure, providing additional decorations such as a hide and reveal button.

GraphNodeFigure

As the name suggests, the hide button will hide the node from the graph, while the reveal button reveals all connected, hidden vertices. The number describes how many adjacent vertices are current hidden.

Note
 If this feature is disabled, the model figure and node figure are identical.

Graph Connection

Each edge is implemented by a GraphConnection and connects two GraphNodes. The shape of this connection can be customized using the ConnectionRouter from Draw2D.

Note
 Graph connections are always added to the Graph, regardless of whether the node are inside a sub-graph. This means that it is possible to e.g. connect two vertices in separate sub-graphs.

HighDPI Support

The Figures used for visualization of the GraphItems are painted using absolute coordinates. In combination with fractional scaling, this may result in rounding errors, causing visual glitches in the graph.

By setting the draw2d.enableAutoscale system property to true, the native scaling capability of the underlying Graph, which is normally provided by SWT, is replaced by a Draw2D-based scaling.

When a Graph is created, a ZoomChanged listener is registered. The current monitor zoom (and any changes to it) is used as scale for the RootLayer.

Relation between the FigureCanvas

Note
 Fractional scaling is currently only supported for Windows, where this system property is enabled by default. On Linux and MacOS, this system property is ignored.
