The Value Specification XText editor uses the XText technology.

The textual editor allow to create/edit some types of Value Specification:

This fonctionnality is implemented through several plugins:

Parser definition

The default grammar of the XText parser for the Value Specification is the following:

(visibility)? (name'=')? value

The values accepted for the differents attributes are the following:

Attribute Required Values accepted
visibility No
  • + (public)
  • # (protected)
  • ~ (package)
  • - (private)
name No String representing an ID (i.e. XText grammar: '^'?('a'..'z'|'A'..'Z'|'_') ('a'..'z'|'A'..'Z'|'_'|'0'..'9')*)
value Yes
  • true or false (LiteralBoolean)
  • positive integer or *(LiteralUnlimitedNatural)
  • negative integer (LiteralInteger)
  • double (LiteralReal)
  • null (LiteralNull)
  • String with quote (LiteralSting). The quote (') is essential for 2 reasons:
    • The XText parser cannot define the difference between the name representing an InstanceSpecification and a simple string value
    • A Non-valid value won't be defined as an OpaqueExpression without quote but always as a LiteralString value
  • Instance Specification name (InstanceValue)
  • <Undefined> or empty (null)

If the text filled is not compatible with the grammar of XText parser, an OpaqueExpression will be created.

The XText parser for Value Specification is not restrictive with the text filled, i.e. the different features setted on an existing Value Specification will be kept if possible.

For example: If an existing Value Specification is a LiteralBoolean named 'testBoolean' with the visibility 'public' and the value setted to true, the text +testBoolean=false and false have the same result: the value of LiteralBoolean existing will pass to false (the name and the visilibity don't change).

The XText parser reacts differently instead of the type of the Value Specification's container:

Without defined type on Value Specification's container

If the type of Value Specification's container is not defined, the default behaviour will be applied.

Here, some examples:

Text filled Namely Created ValueSpecification
Type Visibility Name Value
+testInstanceValue=InstanceSpec1 'InstanceSpec1' is an InstanceSpecification existing in the model InstanceValue public testInstanceValue 'instance' attribute of InstanceValue is a reference to the existing InstanceSpecification named 'InstanceSpec1'
No InstanceSpecification exist in the model OpaqueExpression public +testInstanceValue=InstanceSpec1
+testBoolean=true LiteralBoolean public testBoolean true
#testUnlimitedNatural=5 LiteralUnlimitedNatural protected testUnlimitedNatural 5
~testInteger=-8 LiteralInteger package testInteger -8
-testReal=12.34 LiteralReal private testReal 12.34
~testNull=null LiteralNull package testNull null
-testString="foo" LiteralString private testString foo
##testString="foo" OpaqueExpression public ##testString="foo"

With defined type on Value Specification's container

If the type of Value Specification's container is setted, the same text filled will be have different behaviour depending to the type. In fact, the value filled must be consistent to the type, otherwise an OpaqueExpression will be created.

The different types corresponding to LiteralSpecification are the following:

LiteralSpecification Types corresponding
LiteralBoolean
  • JavaPrimitiveTypes::boolean
  • EcorePrimitiveTypes::EBoolean
  • EcorePrimitiveTypes::EBooleanObject
  • PrimitiveTypes::Boolean
  • XMLPrimitiveTypes::Boolean
  • XMLPrimitiveTypes::BooleanObject
LiteralUnlimitedNatural
  • PrimitiveTypes::UnlimitedNatural
LiteralInteger
  • JavaPrimitiveTypes::int
  • EcorePrimitiveTypes::EInt
  • EcorePrimitiveTypes::EIntegerObject
  • PrimitiveTypes::Integer
  • XMLPrimitiveTypes::Int
  • XMLPrimitiveTypes::Integer
  • XMLPrimitiveTypes::IntObject
LiteralReal
  • JavaPrimitiveTypes::double
  • EcorePrimitiveTypes::EDouble
  • EcorePrimitiveTypes::EDoubleObject
  • PrimitiveTypes::Real
  • XMLPrimitiveTypes::Double
  • XMLPrimitiveTypes::DoubleObject
LiteralString
  • EcorePrimitiveTypes::EString
  • PrimitiveTypes::String
  • XMLPrimitiveTypes::String

Here, some examples:

Text filled Value Specification's container type Created ValueSpecification
Type Visibility Name Value
+testBoolean=true PrimitiveTypes::Boolean LiteralBoolean public testBoolean true
PrimitiveTypes::Integer OpaqueExpression public +testBoolean=true
-testUnlimitedNatural=8 PrimitiveTypes::UnlimitedNatural LiteralUnlimitedNatural private testUnlimitedNatural 8
PrimitiveTypes::Integer LiteralInteger private testUnlimitedNatural 8
PrimitiveTypes::Real LiteralReal private testUnlimitedNatural 8.0
PrimitiveTypes::Boolean OpaqueExpression public -testUnlimitedNatural=8
#testInteger=-6 PrimitiveTypes::UnlimitedNatural OpaqueExpression public #testInteger=6
PrimitiveTypes::Integer LiteralInteger protected testInteger 6
PrimitiveTypes::Real LiteralReal protected testInteger 6.0
PrimitiveTypes::Boolean OpaqueExpression public #testInteger=6
-testReal=4.5 PrimitiveTypes::Integer OpaqueExpression public -testReal=4.5
PrimitiveTypes::Real LiteralReal private testReal 4.5

Papyrus integration

Direct editor configuration

The Direct Editor Condiguration allow to define a new cirect editor for Papyrus. This define the object type to edit and the editor configuration class used for the integration of editor. For the Value Specification XText editor, a default Direct Editor Configuration is already defined: ValueSpecificationXTextDirectEditorConfiguration which allow to manage the type org.eclipse.uml2.uml.ValueSpecification.

Manage the default languages of created OpaqueExpression

To redefine the default languages used by created OpaqueExpression by the properties widget, a class extending the ValueSpecificationXTextDirectEditorConfiguration must be created and the method getDefaultLanguages() must be override.

Then, this created direct editor configuration must be referenced in the org.eclipse.papyrus.extensionpoints.editors.DirectEditor extension point with a higher priority than the default (Lowest).

Properties integration

Define the context and the xwt files

The context file allow to define the field available in the properties view. To define the field which will be displayed in the properties view with XText parser and completion, the UMLStyledTextReferenceDialog will be used.

This class contains a UMLXTextReferenceValueEditor which contains a StyledText for the text fill and StyledTextXTextAdapter to manage the XText parser and completion.

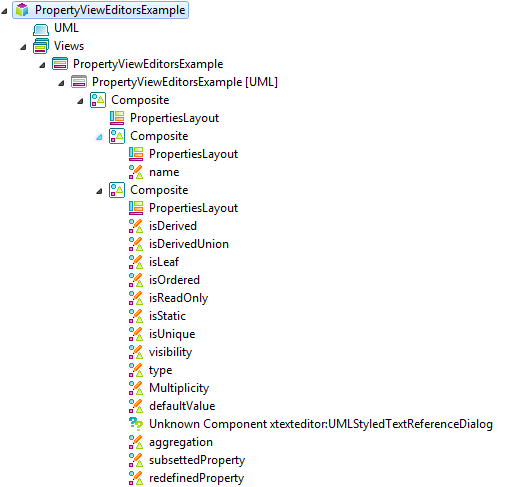

Here, an example of context and xwt file for the default value of property object:

In the PropertyEditor created, an attribute directEditorConfiguration will be implemented to define the direct editor configuration class to use for the edited object:

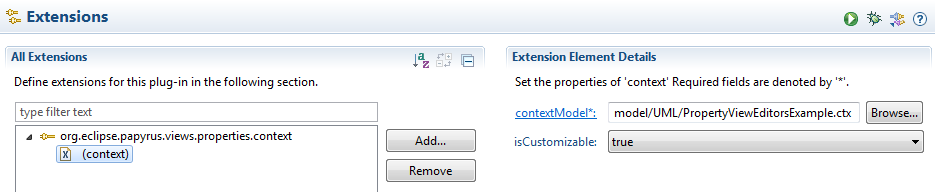

The context file must be referenced in the org.eclipse.papyrus.views.properties.context extension point:

Cell of NatTable integration

Define the cell editor configuration

A default cell editor configuration already exists for the Value Specification: ValueSpecificationCellEditorConfiguration. But to get the possible XText parser and completion in cell of NatTable, the cell editor configuration must be extended and the created class must be referenced in the org.eclipse.papyrus.infra.nattable.celleditor.configuration extension point with an inferior order than the others.

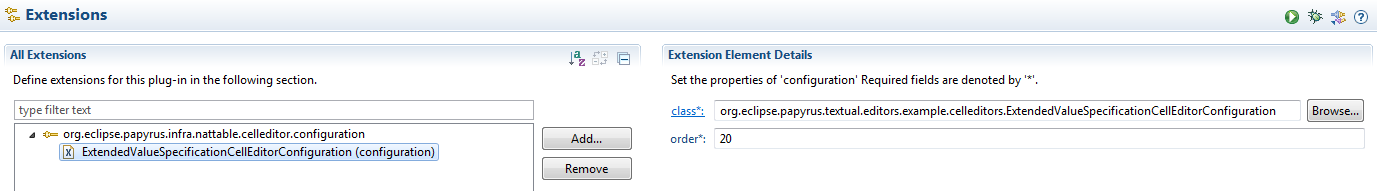

Here, an example:

Define the cell manager

A default cell manager already exists for the Value Specification: ValueSpecificationCellManager. But to get the possible XText parser and completion in call of NatTable, the cell manager must be extended and the created class must be referenced in the org.eclipse.papyrus.infra.nattable.cellmanager extention point with an inferior order than the others.

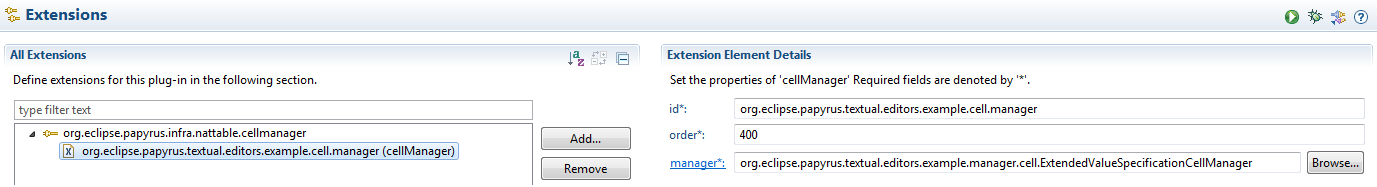

Here, an example:

Manage the default languages of created OpaqueExpression

To redefine the default languages used by created OpaqueExpression by the cell editor, the method getDefaultLanguages() must be overridden in the class extended from ValueSpecificationCellManager.
