Overview

Papyrus provides for validation of tooling models for DSML and other customization plug-ins, including:

• Validation of a UML profiles, both static (generated) and dynamic
• Validation of element types configurations
• Validation of architecture domain models
• Validation of element creation menu models

Validation is provided as a project builder that is optionally enabled by the user.

Papyrus Plug-in Builder

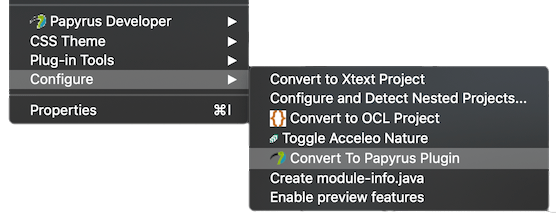

To enable automatic validation of tooling models in your customization plug-ins, configure the Papyrus Plug-in nature on your customization plug-in projects. In the context menu for your project, select the Configure → Convert to Papyrus Plugin action:

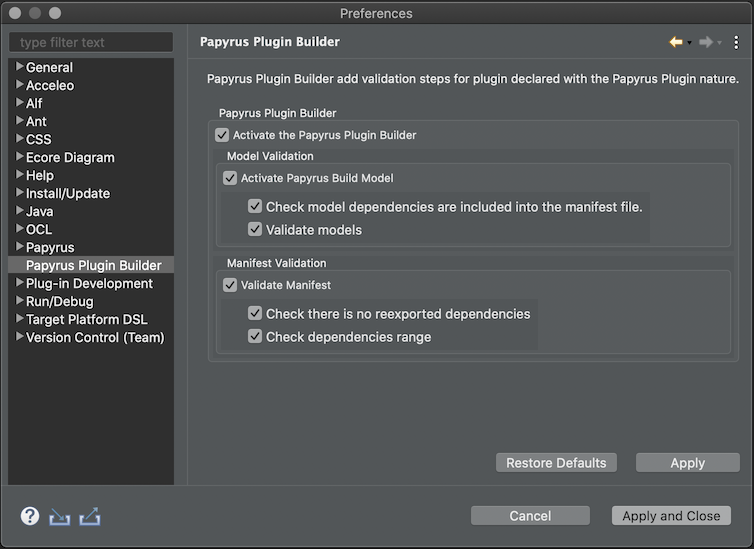

What is checked by the builder depends on settings in the Preferences. By default, the Papyrus Plug-in Builder performs no validation.

There are a number of options available to enable:

• whether to check anything at all when building a Papyrus project
• whether to validate Papyrus tooling customization models. And, if so, whether to
  • check that model dependencies implied by tooling models are included in the bundle manifest
  • check other well-formedness rules of the models, themselves
• whether to validate bundle and plug-in manifests. And, if so, whether to
  • check for the anti-pattern of dependency re-exports
  • check for the recommended practice of constraining bundle dependencies with compatible version ranges

Profile Plug-in Validation

This section describes the validation checks performed by the Papyrus Plug-in Builder on UML Profiles.

What is checked?

To validate a profile plug-in, we have some points to check. Here are the checked points:

• For each profile found in the plug-in:
  • Validation of the profile definition into the 'plugin.xml' file: ERROR (for 'generated_package' extension) and WARNING (for 'UMLProfile' extension)
  • Validate that the profile has no definition because it's not working with static profile: ERROR
  • Validation of the dependencies needed in the 'MANIFEST.MF' file for the external dependencies of the profile file: WARNING (because maybe the dependency is not really needed (implicit dependence?))
  • Validation of the 'build.properties' file (it must contain the profile file): ERROR

Where to find the result?

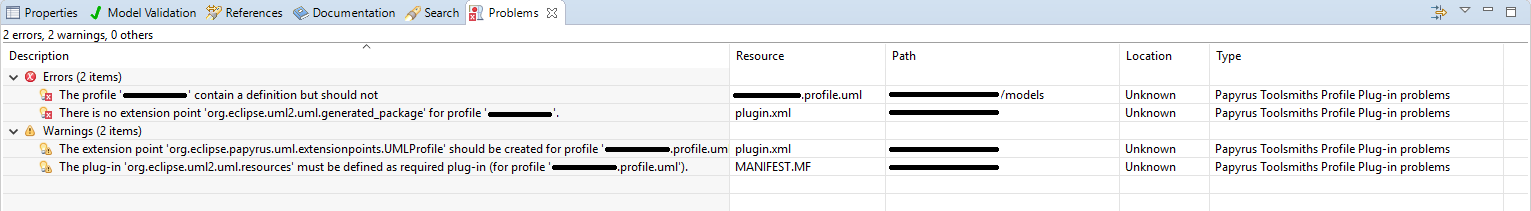

The result is display in the 'Problems' view and are categorized by the type 'Papyrus Toolsmiths Profile Plug-in problems'.

Like others problems, you can double-click on one to open the concerning file. You can delete problem too when you think it is managed.

Element Types Plug-in Validation

This section describes the validation checks performed by the Papyrus Plug-in Builder on Element Types Configurations.

What is checked?

Several validation rules are checked for any plug-in project that contains Element Types Configuration models, including:

• Bundle manifest dependencies on core element-types framework bundles: WARNING
  • 'org.eclipse.papyrus.infra.types.core'
  • 'org.eclipse.papyrus.infra.types'
• For each element types configuration model found in the plug-in:
  • Validation of the element types file itself: errors or warnings as described for different elements, below
    • an icon resource referenced by the element types configuration model does not exist: ERROR
  • Validation of the element types model registration in the 'plugin.xml' file
    • if there is a registration on the extension point, and it omits the client-context ID: ERROR
    • if there is no registration extension and there is no architecture model that references it: WARNING
  • Validation of bundle dependencies in the 'MANIFEST.MF' file implied by the element types configuration model:
    • missing dependency on the bundle that deploys the metamodel referenced by NS URI: ERROR
    • referenced metamodel NS URI that cannot be resolved to a bundle that provides the metamodel: ERROR
    • missing dependency on the bundle that deploys a referenced element types configuration model: ERROR
    • missing dependency on the bundle that deploys a profile referenced by UML stereotype element-types: ERROR
    • missing dependency on the bundle that deploys an icon referenced by the model: ERROR
  • Validation of the 'build.properties' file
    • If any of the following resources is not included in the binary build: ERROR
      • the element types configuration model file, itself
      • any other element types configuration model or icon referenced by the model that is in the same plug-in

There are special element types configuration model elements available for definition of element types on the basis of the stereotypes in UML profiles. These are validated for availability or suitability of the referenced UML profile constructs:

• Apply Stereotype Advice
  • profile referenced by qualified name is not found in the workspace nor in the target platform: ERROR
  • stereotype referenced by qualified name is not found in any profile in the workspace nor in the target platform: ERROR
  • a Feature to Set is not contained by an Apply Stereotype Advice Configuration: ERROR
  • a Feature to Set references a feature that the stereotype does not have: ERROR
• Stereotype Application Matcher (and, by inheritance, the Stereotype Application Matcher Advice)
  • profile referenced by namespace URI is not found in the workspace nor in the target platform: ERROR
  • stereotype referenced by qualified name is not found in any profile in the workspace nor in the target platform: ERROR
• Stereotype Property Reference Edge Advice
  • stereotype referenced by qualified name is not found in any profile in the workspace nor in the target platform: ERROR
  • the feature to set references a feature that the stereotype does not have: ERROR
  • the feature to set does not have a type, and therefore cannot be set: ERROR

The rules above are not checked in the Element Types Configurations Editor while editing a model because they depend on the deployment of dependent resources in tooling bundles. Therefore, they are only checked by the tooling validation mechanisms described in this documentation. Other intrinsic model well-formedness constraints for element types configurations are checked by the editor; they are described in the documentation of the Element Types Configurations model.

Where to find the result?

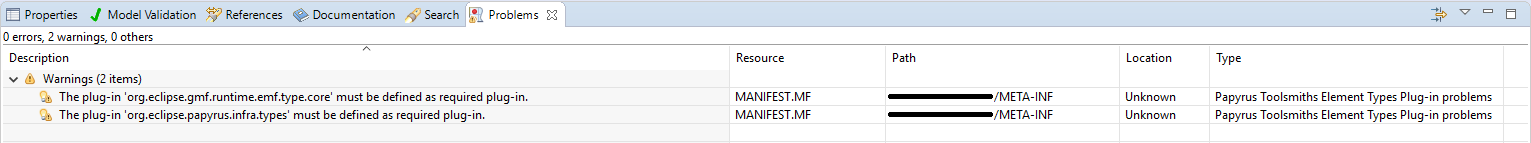

The result is displayed in the 'Problems' view and are categorized by the type 'Papyrus Toolsmiths Element Types Plug-in Problem'.

Like others problems, you can double-click on one to open the relevant file. You may delete a problem that you think is resolved, but if it is not, then it will be presented again by the next validation.

Architecture Plug-in Validation

This section describes the validation checks performed by the Papyrus Plug-in Builder on Architecture Models.

What is checked?

Several validation rules are checked for any plug-in project that contains Architecture Context models, including:

• Bundle manifest dependencies on core Architecture Framework bundles: WARNING
  • 'org.eclipse.papyrus.infra.architecture'
• For each architecture context model found in the plug-in:
  • Validation of the architecture context model file itself: errors or warnings as described for different elements, below
  • an icon resource referenced by the architecture context model does not exist: ERROR
  • Validation of the architecture context model registration in the 'plugin.xml' file
    • if there is no registration extension: ERROR
  • Validation of bundle dependencies in the 'MANIFEST.MF' file implied by the architecture context model:
    • missing dependency on the bundle that deploys a metamodel or profile referenced by some Architecture Context: ERROR
    • referenced metamodel that cannot be resolved to a bundle that provides the metamodel or profile: ERROR
    • missing dependency on the bundle that deploys or defines an external resource: ERROR
      • element types configuration model referenced by an Architecture Context
      • palette configuration model referenced by a Representation Kind
      • an icon resource referenced by the architecture context model
      • a creation or conversion command class referenced by an Architecture Context or a Representation Kind
  • Validation of the 'build.properties' file
    • If any of the following resources is not included in the binary build: ERROR
      • the architecture context model file, itself
      • any element types configuration model file, palette configuration model file, or icon referenced by the model that is in the same plug-in

The rules above are not checked in the Architecture Model Editor while editing a model because they depend on the deployment of dependent resources in tooling bundles. Therefore, they are only checked by the tooling validation mechanisms described in this documentation. Other intrinsic model well-formedness constraints for architecture contexts are checked by the editor; they are described in the documentation of the Architecture Context model.

Where to find the result?

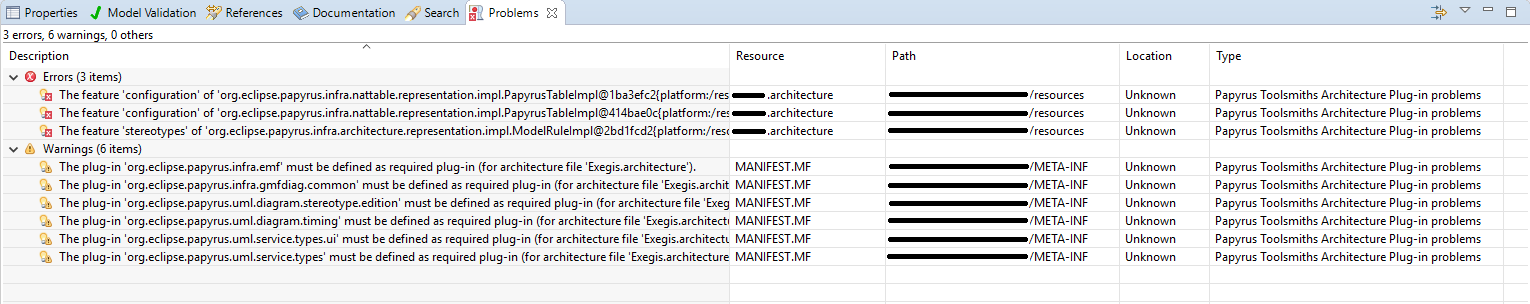

The result is displayed in the 'Problems' view and are categorized by the type 'Papyrus Toolsmiths Architecture Plug-in Problem'.

Like others problems, you can double-click on one to open the relevant file. You may delete a problem that you think is resolved, but if it is not, then it will be presented again by the next validation.

Element Creation Menu Plug-in Validation

This section describes the validation checks performed by the Papyrus Plug-in Builder on Element Creation Menus.

What is checked?

Several validation rules are checked for any plug-in project that contains Element Creation Menu models, including:

• Bundle manifest dependencies on core Element Creation Menu bundles: WARNING
  • 'org.eclipse.papyrus.infra.newchild'
• For each element creation menu model found in the plug-in:
  • Validation of the element creation menu model file itself: errors or warnings as described for different elements, below
  • an icon resource referenced by the element creation menu model does not exist: ERROR
  • a role name configured on a creation menu does not appear to exist in any known registered element type configuration: WARNING
  • Validation of the element creation menu model registration in the 'plugin.xml' file
    • if there is no registration extension: ERROR
  • Validation of bundle dependencies in the 'MANIFEST.MF' file implied by the element creation menu model:
    • missing dependency on the bundle that provides any of the items, below: ERROR
      • an element type referenced by some creation menu
      • an icon resource referenced by the creation menu model
  • Validation of the 'build.properties' file
    • If any of the following resources is not included in the binary build: ERROR
      • the element creation menu model file, itself
      • any element types configuration model file or icon referenced by the model that is in the same plug-in

The rules above are not checked in the Element Creation Menu Model Editor while editing a model because they depend on the deployment of dependent resources in tooling bundles. Therefore, they are only checked by the tooling validation mechanisms described in this documentation. Other intrinsic model well-formedness constraints for element creation menu models are checked by the editor; they are described in the documentation of the Element Creation Menu model.

Where to find the result?

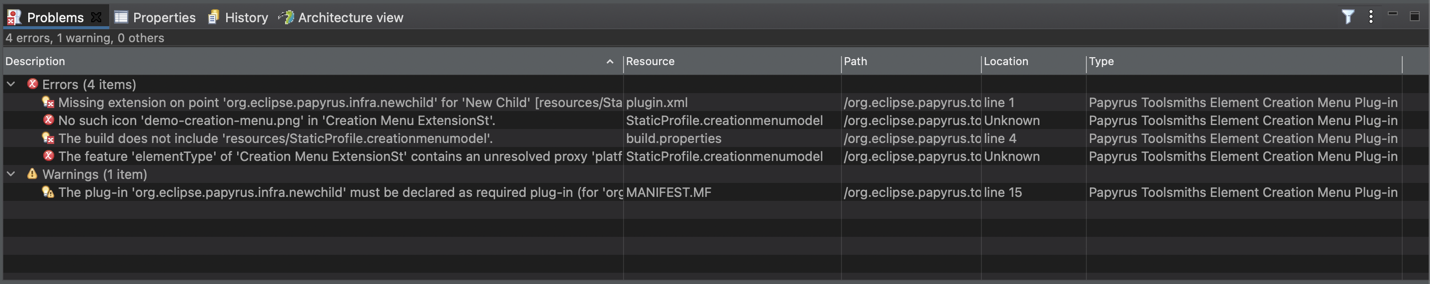

The result is displayed in the 'Problems' view and are categorized by the type 'Papyrus Toolsmiths Element Creation Menu Plug-in Problem'.

Like others problems, you can double-click on one to open the relevant file. You may delete a problem that you think is resolved, but if it is not, then it will be presented again by the next validation.

Properties Model Plug-in Validation

This section describes the validation checks performed by the Papyrus Plug-in Builder on Properties models.

What is checked?

Several validation rules are checked for any plug-in project that contains Properties Context and/or Environment models, including:

• Bundle manifest dependencies on core Papyrus Properties Framework bundles: WARNING
  • 'org.eclipse.papyrus.infra.properties'
• For each properties context model found in the plug-in that traces to a UML Profile or an Ecore package from which it was generated:
  • Validation of the context model file itself and XWT section files that it references: errors or warnings as described for different elements, below
    • a data context package does not trace to a source UML Profile or Ecore package: WARNING
    • a data context package traces to a source UML Profile or Ecore package that appears no longer to exist: ERROR
    • a data context package has a different name than the source UML Profile or Ecore package to which it traces: ERROR
    • a data context package is missing nested packages or data context elements for nested packages or classes in the source UML Profile or Ecore package: WARNING
    • a data context element does not trace to a source UML Stereotype or Ecore Eclass: WARNING
    • a data context element traces to a source UML Stereotype or Ecore Eclass that appears no longer to exist: WARNING
    • a data context element has a different name than the source UML Stereotype or Ecore Eclass to which it traces: ERROR
    • a data context element is missing properties for attributes of the source UML Stereotype or Ecore EClass: WARNING
    • a data context package does not trace to an attribute of a source UML Stereotype or Ecore Eclass: WARNING
    • a data context property traces to an attribute of the source UML Profile or Ecore package that appears no longer to exist: ERROR
    • a data context property has a different name than the attribute of the source UML Stereotype or Ecore Eclass to which it traces: ERROR
    • a data context property has a type that appears to be inconsistent with the type of the corresponding attribute in the source UML Stereotype or Ecore Eclass: WARNING
    • a property editor in the XWT section has a widget type that appears to be inconsistent with the type of the data context property that it edits: WARNING
  • Validation of the properties context model registration in the 'plugin.xml' file
    • if there is no registration extension: ERROR
  • Validation of bundle dependencies in the 'MANIFEST.MF' file implied by the properties context model:
    • missing dependency on the bundle that deploys the UML Profile or Ecore package from which the context was generated: ERROR
  • Validation of the 'build.properties' file
    • If any of the following resources is not included in the binary build: ERROR
      • the properties context model file, itself
      • any XWT resource referenced by the context
• For each properties environment model found in the plug-in:
  • Validation of the environment model file itself: errors or warnings as described for different elements, below
    • a Java class referenced for a model element factory or other concept does not exist: ERROR
  • Validation of the properties environment model registration in the 'plugin.xml' file
    • if there is no registration extension: ERROR
  • Validation of bundle dependencies in the 'MANIFEST.MF' file implied by the properties environment model:
    • missing dependency on the bundle that defines Java classes referenced in the environment: ERROR
  • Validation of the 'build.properties' file
    • If any of the following resources is not included in the binary build: ERROR
      • the properties model file, itself
      • any other environment model cross-referenced by it in the same project

The rules above are not checked in the Properties Context Editor while editing a model because they depend on the deployment of dependent resources in tooling bundles. Therefore, they are only checked by the tooling validation mechanisms described in this documentation. Other intrinsic model well-formedness constraints for modelign assistants are checked by the editor; they are described in the documentation of the Properties Context model.

Where to find the result?

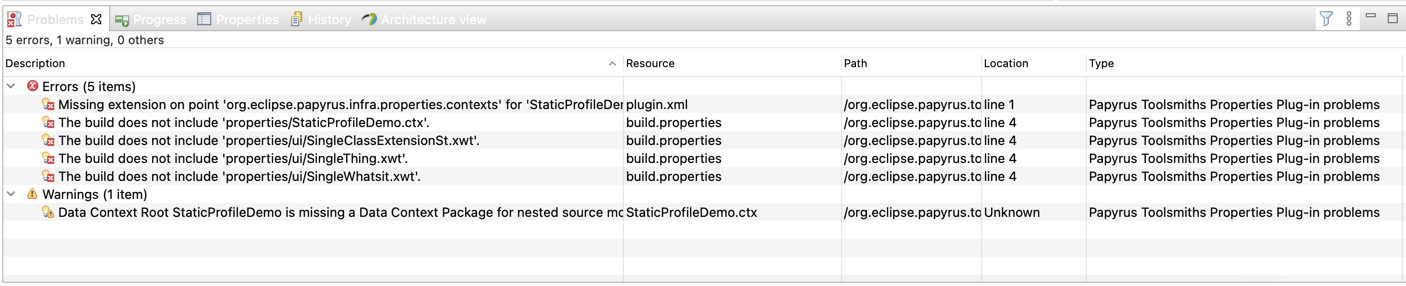

The result is displayed in the 'Problems' view and are categorized by the type 'Papyrus Toolsmiths Properties Plug-in Problem'.

Like other problems, you can double-click on one to open the relevant file. You may delete a problem that you think is resolved, but if it is not, then it will be presented again by the next validation.
