Introduction

The ElementTypesConfigurations Framework provides model-based facilities to define high-level constructs on top of an EMF metamodels based on the GMF Extensible Type Registry. Indeed, EMF generates CRUD-like facilities to manipulate the underlying data structure of the metamodel. However, this low-level facilities are not always adequate or efficient to handle high-level model editing. The ElementTypesConfigurations Framework is a registry in which you can register new application specific constructs that you’ll be able to request for high level commands like relationship reorienting, complex pattern creation...

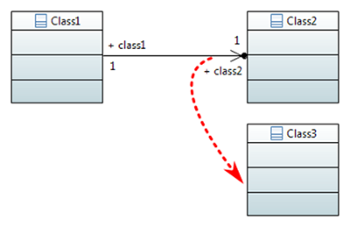

For instance, in the context of the UML metamodel, if you have a UML::Association between two UML::Class Class1 and Class2 and you want to reorient the Association from Class2 to another existing UML::Class Class3, there are many model modifications to do. The property p2:Class2 must be moved to Class3 (if it is "owned by classifier") and the type of this UML::Property must be changed to Class3. In this example, an ElementTypeConfiguration called "UML::Association" can be defined to always build the complex command containing the upper-mentioned atomic model modifications whenever a reorient request is done.

This framework being based on GMF ElementTypeRegistry, the reader may refer to GMF “Developer's Guide to the Extensible Type Registry” for details about the GMF ElementTypeRegistry.

High level editing requests

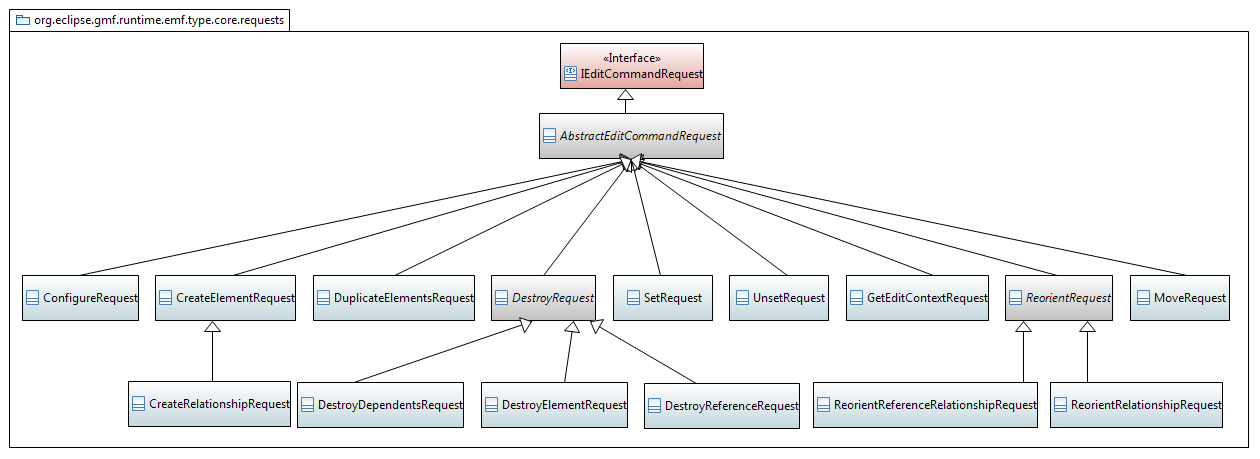

There are various high-level requests already provided by Papyrus. All of them must implement org.eclipse.gmf.runtime.emf.type.core.requests.IEditCommandRequest and should extend org.eclipse.gmf.runtime.emf.type.core.requests.AbstractEditCommandRequest. The following requests are dedicated to EMF-based model editing:

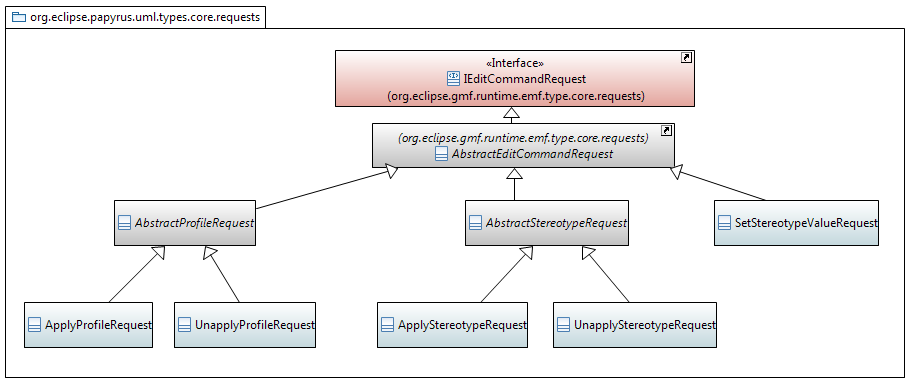

In addition to those, Papyrus proposes requests dedicated to UML:

Definition of ElementTypeConfigurations

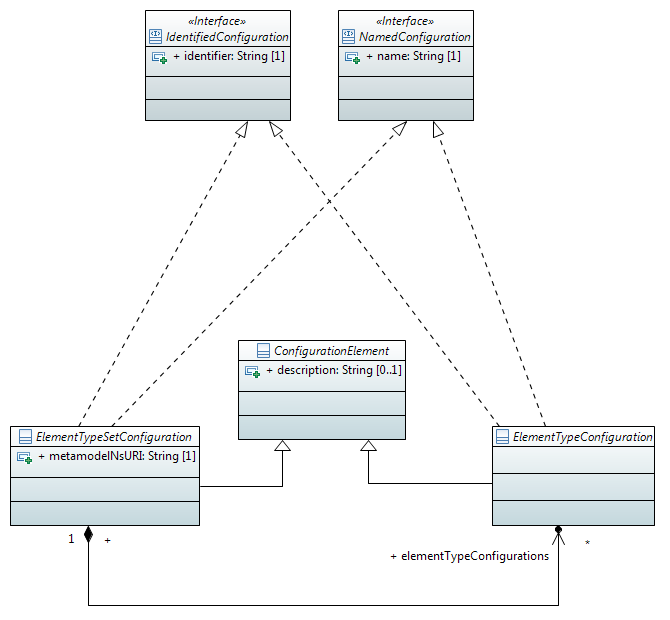

To define new ElementTypeConfiguration, a model conforming to the http://www.eclipse.org/papyrus/infra/elementtypesconfigurations/1.1 metamodel (defined in org.eclipse.papyrus.infra.types) must be created. At the root of this model, an ElementTypeSetConfiguration must be created. The ElementTypeSetConfiguration must have a unique identifier and a name (it is a display name). It must also specify the NsURI of the metamodel it contributes 'ElementTypeConfiguration'' to.

The ElementTypesConfigurations can be of two types: MetamodelTypeConfiguration and SpecializationTypeConfiguration. In both case, it may have a hint and a kind. So far this kind must be left to its default value (namely org.eclipse.gmf.runtime.emf.type.core.IHintedType). The hint (also known as Semantic Hint) is an optional identifier that may be used by a viewprovider (org.eclipse.gmf.runtime.diagram.core.providers.IViewProvider). The diagrams implemented in Papyrus are providing views for particular hints so that if you are defining your own ElementTypeConfiguration and want it to be viewable in an existing Papyrus diagram, you must align the value of the hint with the one provided by the target diagram.

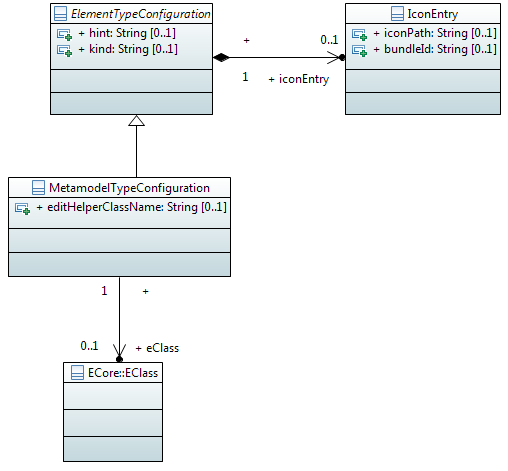

The MetamodelTypeConfigurations can reference an EClass in the EMF metamodel. The MetamodelTypeConfigurations defines the base editing command for these elements. The command is implemented by an EditHelper class that must extend org.eclipse.papyrus.infra.gmfdiag.common.helper.DefaultEditHelper and should be referenced using the editHelperClassName attribute.

If multiple MetamodelTypeConfiguration based on the same EClass must provide different base command, multiple ClientContext must be defined. ClientContext are used to group definitions from different ElementTypeSetConfiguration in consistent partition in the registry of ElementTypeConfiguration. There must be maximum one MetamodelTypeConfiguration for a single EClass in a given ClientContext. All model elements of the same EClass and ClientContext have the same MetamodelTypeConfiguration.

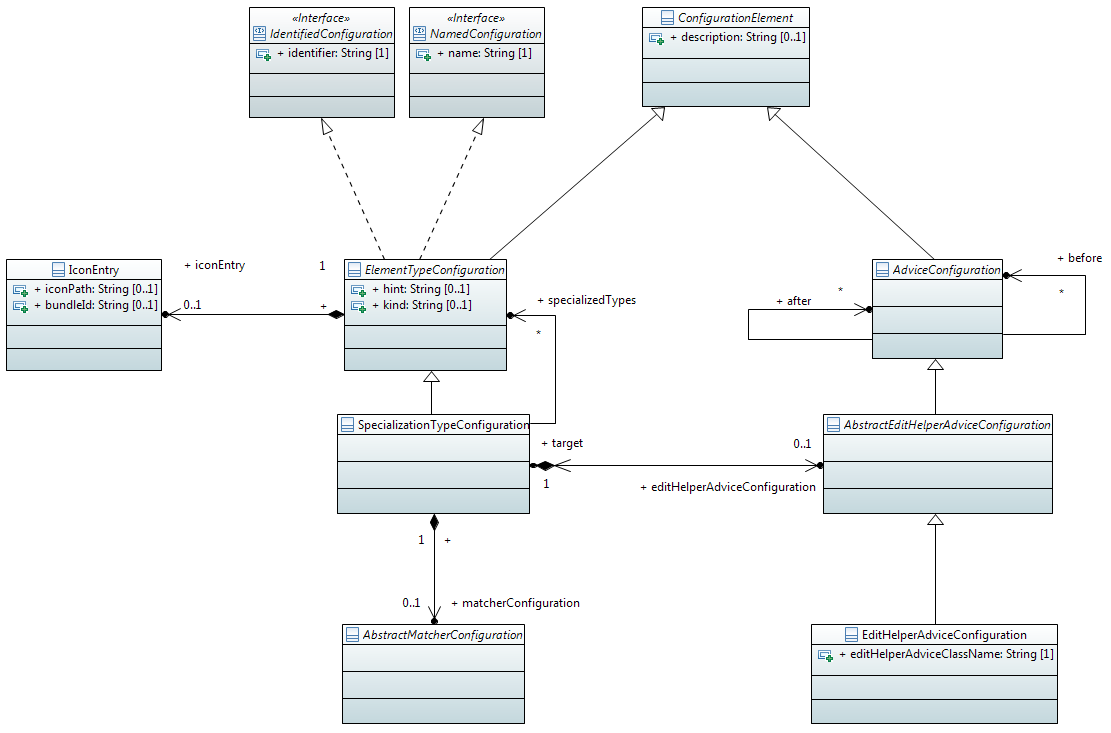

SpecializationTypeConfiguration are used to extend the base editing command provided by a MetamodelTypeConfiguration. A SpecializationTypeConfiguration must specialize at least one ElementType. The definition of the specialized ElementType is done using the specializedTypes attribute. If multiple SpecializationTypeConfiguration specialize a MetamodelTypeConfiguration, they may be distinguished using a MatcherConfiguration. Note that to create an ElementTypeConfiguration that has no EClass (e.g. an EReference in the metamodel), the org.eclipse.gmf.runtime.emf.type.core.NullElementType (whose identifier is org.eclipse.gmf.runtime.emf.type.core.null) ElementType should be specialized.

SpecializationTypeConfiguration may have an AdviceEditHelper bound to them directly to extend the base editing command with Advice.

Advice are used to define pre and post actions to the base editing command. When an edit is performed on a model element, advices from all of the specializations that match that object is contributed to the command. To force the execution order of the advices bound to an ElementTypeConfiguration, the before and after attributes may be used by an advice to refer to the advices that must be executed before or after this itself.

Definition of AdviceBindings

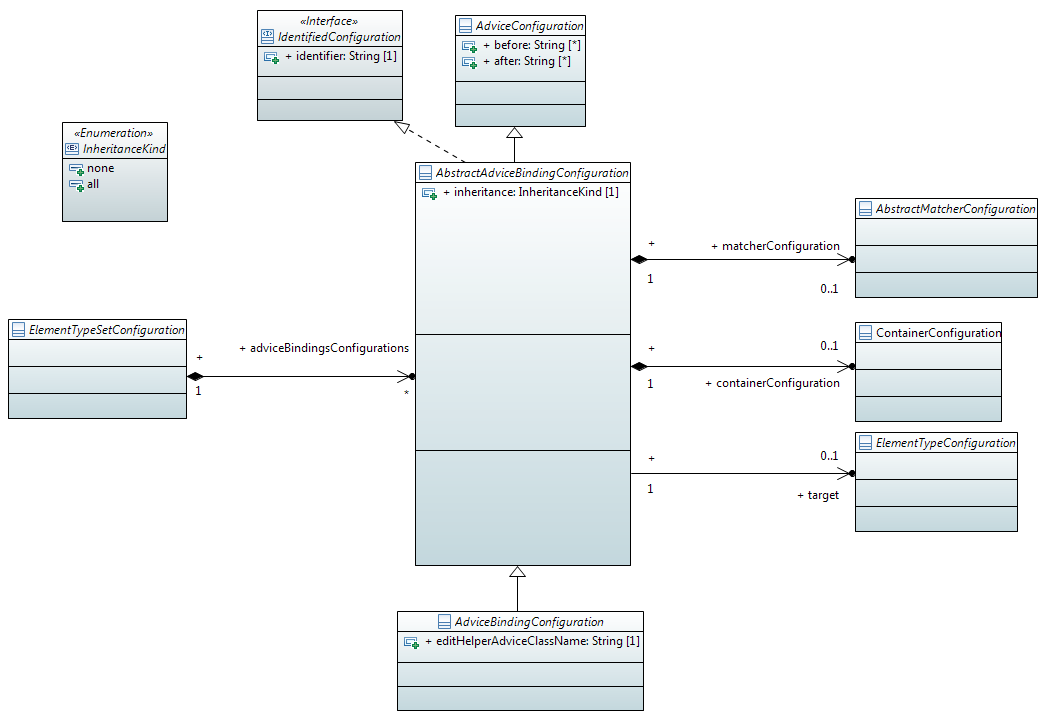

Using AdviceBindingConfiguration, additional advices can be defined in an ElementTypeSetConfiguration' and bound to the ElementTypeConfiguration'' of that ElementTypeSetConfiguration. If the target of the AdviceBindingConfiguration is not defined, the advice will be bound to all ElementType in the clientcontext. The advice is implemented by an EditHelperAdvice class that must extend org.eclipse.gmf.runtime.emf.type.core.edithelper.AbstractEditHelperAdvice and should be referenced using the editHelperAdviceClassName attribute. The inheritance parameter is used to define if the advice applies only to the target ElementType ( none) or to the target ElementType and its specializations ( all).

Define the edit behavior

Command computation

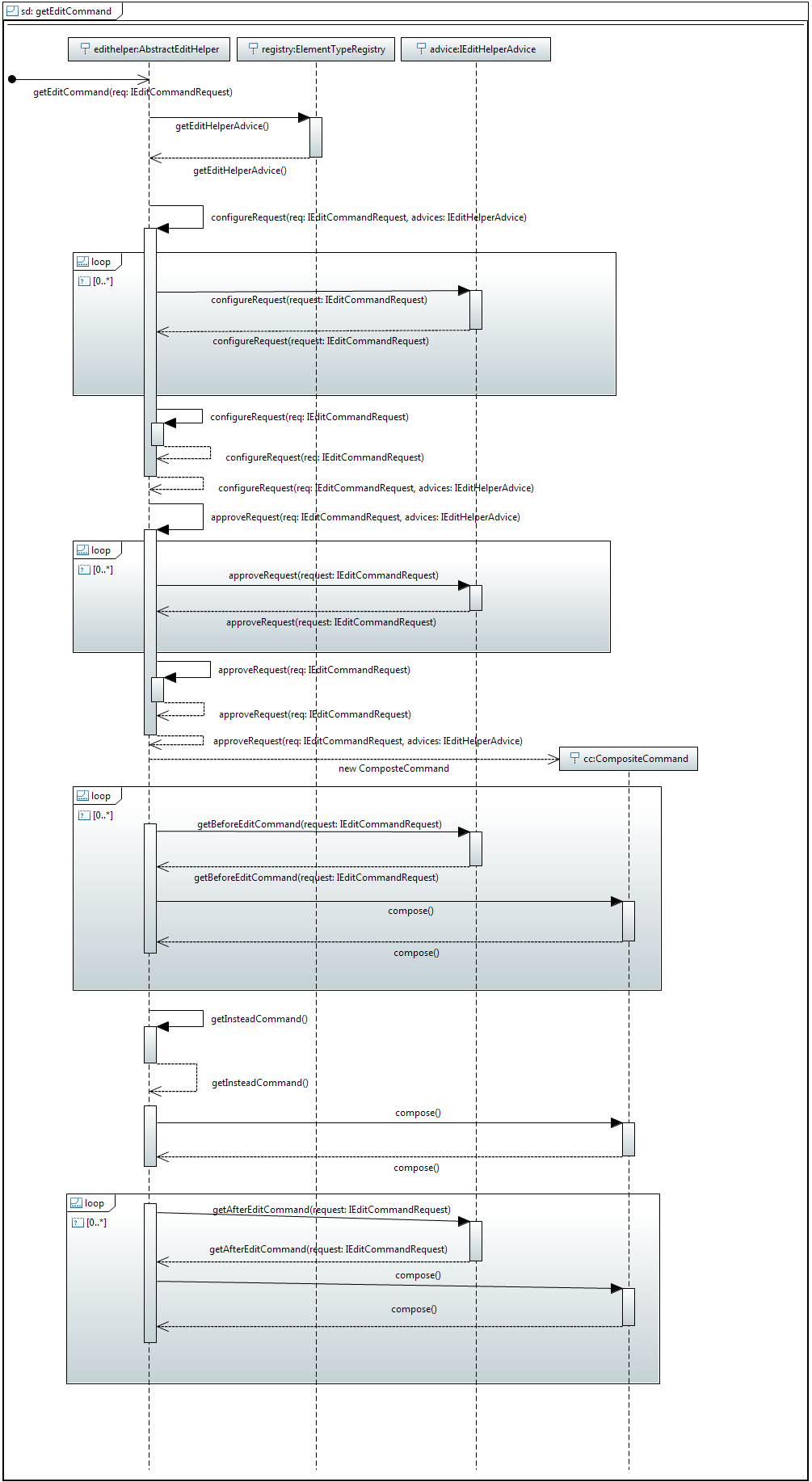

The computation of the command from a request by the EditHelper is mainly defined in org.eclipse.gmf.runtime.emf.type.core.edithelper.AbstractEditHelper. Note that org.eclipse.papyrus.infra.gmfdiag.common.helper.DefaultEditHelper indirectly extends org.eclipse.gmf.runtime.emf.type.core.edithelper.AbstractEditHelper.

  1. The EditHelper asks the registry for all ElementTypes that apply to a specific EditHelperContext (EObject or IElementType). The registry iterates over the registered edit advice and tests the container descriptor and matcher of each advice against the EditHelperContext.
  2. The registry returns all of the advice whose criteria matched the EObject or IElementType.
  3. The EditHelper iterates the advice returned by the registry:
  4. The EditHelper asks itself for base configuration of the edit request.
  5. The EditHelper iterates the advice returned by the registry:
  6. The EditHelper asks itself for base approval of the edit request.
  7. The EditHelper constructs a new composite command.
  8. The EditHelper iterates the advice returned by the registry:
  9. The EditHelper gets the base edit behavior (namely the InsteadCommand).
  10. The default edit behavior is returned. Subclasses will override the default behavior as required.
  11. The EditHelper adds the default edit behavior to the composite command.
  12. The composite command returns itself.
  13. The EditHelper iterates the advice retuned by the registry:
  14. The EditHelper returns the composite command.

Definition of an EditHelper

EMF-based editing

To provide the base edit commands corresponding to the various requests, an EditHelper class that extends org.eclipse.papyrus.infra.gmfdiag.common.helper.DefaultEditHelper must override the method corresponding to the type of request to handle. For example, if the domain-specific concept must handle the creation relationship with a custom editing behavior, the corresponding request type is org.eclipse.gmf.runtime.emf.type.core.requests.CreateRelationshipRequest and therefore the method to override is ICommand getCreateRelationshipCommand(CreateRelationshipRequest req).

To disapprove an editing request, boolean approveRequest(IEditCommandRequest request) method may be overridden.

To configure the request, void configureRequest(IEditCommandRequest request) method may be overridden.

UML-based editing

Papyrus adds high-level requests dedicated to UML. To handle those requests, org.eclipse.papyrus.uml.types.core.edithelper.DefaultUMLEditHelper should be extended. The methods corresponding to the type of requests to handle can be overridden to provide specific base edit behavior. For instance, to handle the application of a Stereotype, ICommand getApplyStereotypeCommand(ApplyStereotypeRequest req) must be overridden.

Definition of an EditHelperAdvice

EMF-based editing

To add pre or post edit commands to the base command for the various requests, an EditHelperAdvice class that extends org.eclipse.gmf.runtime.emf.type.core.edithelper.AbstractEditHelperAdvice must override the method corresponding to the type of request to handle. For example, if the advice must add a specific editing behavior after the creation relationship, the corresponding request type is org.eclipse.gmf.runtime.emf.type.core.requests.CreateRelationshipRequest and therefore the method to override is ICommand getAfterCreateRelationshipCommand(CreateRelationshipRequest request). To disapprove an editing request, boolean approveRequest(IEditCommandRequest request) method may be overridden. To configure the request, void configureRequest(IEditCommandRequest request) method may be overridden.

UML-based editing

Papyrus adds high-level requests dedicated to UML. To handle those requests, org.eclipse.papyrus.uml.types.core.edithelper.DefaultUMLEditHelperAdvice should be extended.

Bind ElementTypeSetConfiguration to a ClientContext

Using ExtensionPoint

Use the org.eclipse.papyrus.infra.types.core.elementTypeSetConfiguration extensionpoint to register an ElementTypeSetConfiguration and bind its content to a ClientContext.

ElementTypeConfiguration Framework extension mechanism

If the definition of the ElementTypeConfiguration, AdviceConfiguration, ContainerConfiguration or MatcherConfiguration starts to be repetitive because, for instance, the same implementation of an IEditHelperAdvice is reused systematically, the ElementTypeConfiguration Framework can be extended to add new predefined ElementTypeConfiguration, AdviceConfiguration, ContainerConfiguration or MatcherConfiguration kinds.

For that, an extension of the http://www.eclipse.org/papyrus/infra/elementtypesconfigurations/1.1 metamodel can be created and used in combination with the org.eclipse.papyrus.infra.types.core.elementTypeConfigurationKind, org.eclipse.papyrus.infra.types.core.adviceConfigurationKind, org.eclipse.papyrus.infra.types.core.containerConfigurationKind and org.eclipse.papyrus.infra.types.core.matcherConfigurationKind extensionpoints.

The approach is always the same:

Developers may have a look at the org.eclipse.papyrus.infra.types.rulebased or org.eclipse.papyrus.uml.types.core plugins that use this extension mechanism to predefine ElementTypesConfiguration or AdviceConfiguration kinds.

For example, the org.eclipse.papyrus.uml.types.core plugin introduces the org.eclipse.papyrus.uml.types.core.advices.applystereotype.ApplyStereotypeAdviceConfiguration metaclass that extends the org.eclipse.papyrus.types.AbstractAdviceBindingConfiguration metaclass. This specialization adds attributes to define at a model level the stereotypes to apply to the UML element created by the ElementType bound to this new special kind of advice. The org.eclipse.papyrus.uml.types.core.advices.applystereotype.ApplyStereotypeAdviceConfigurationFactory forces the implementation of the EditHelperAdvice to be org.eclipse.papyrus.uml.types.core.advices.applystereotype.ApplyStereotypeAdviceEditHelperAdvice. This later EditHelperAdvice provides the model interpretation for the ApplyStereotypeAdviceConfiguration metamodel extension.

Developer views

To assist the definition and the development of ElementTypes and Advice, the ElementTypeConfiguration Framework provides two developer views (available in the org.eclipse.papyrus.dev.types plugin).

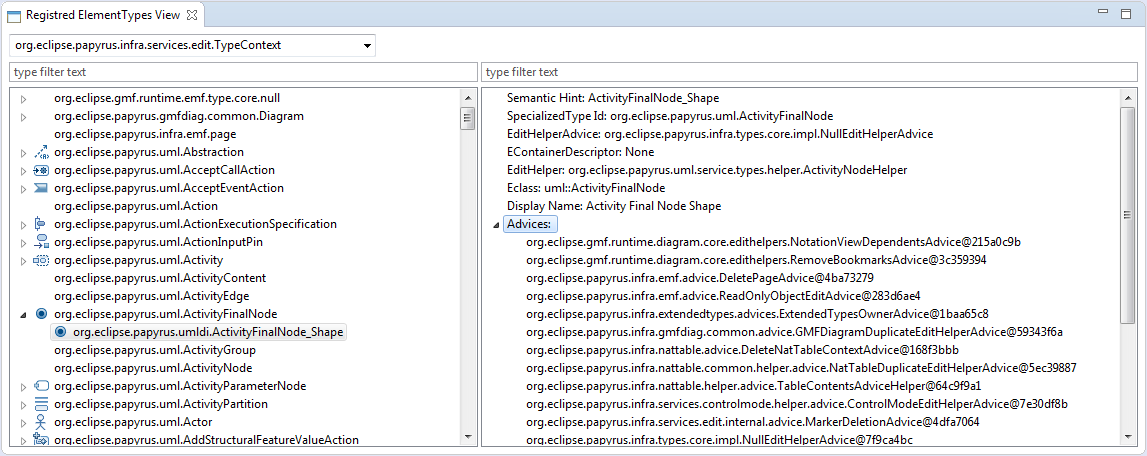

Registered ElementTypes View

Explore the ElementTypeRegistry using the "Registered ElementTypes View". Use the dropdown menu to select the ClientContext to explore. Select the ElementType to explore in the left hand side tree viewer (the child/parent relationship in this tree illustrates the specialization relationship). On the right hand side, details on the selected ElementType are given. Notably, the Advice that are bound to the selected ElementType are listed and sorted (execution order of advices).

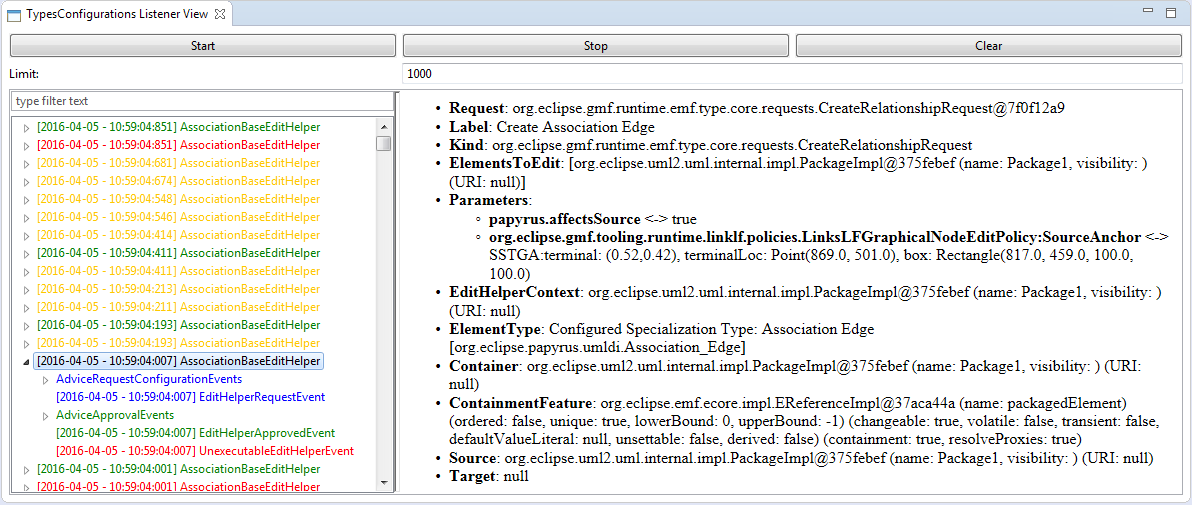

TypesConfiguration Listener View

This view works only if the debug option is enabled (-debug in the program arguments). This view traces the notifications from the ElementType and Advice while editing. It notably helps to trace what request has been sent, what ElementType and Advice have been triggered and how those latter replied to the request.
