The purpose of this documentation is to give the minimum information to deploy your own decorator for Papyrus elements as EditPart. To manage decorator on Edit Part two solutions are provided by Papyrus:
Decoration Service is compliant with gif, ico, bmp, jpg and png files. Contextual message can be set for each decoration, and propagation to parents can be allowed. Unlike Decoration Service, Shape Service is only compliant to svg files, but the position of the shape can be selected within in the properties view. Others differences are that the shape can be displayed in the symbol compartment and it can be used as the shape of the figure.
GMF Decorator Service Framework can also be used to display image. As the Decoration Service from papyrus you will be available to display several formats of images.
The decoration service architecture has already been described on a document ( here). You will find a description of main interfaces or classes to be implemented or to be called in order to use the framework and add specific decoration.

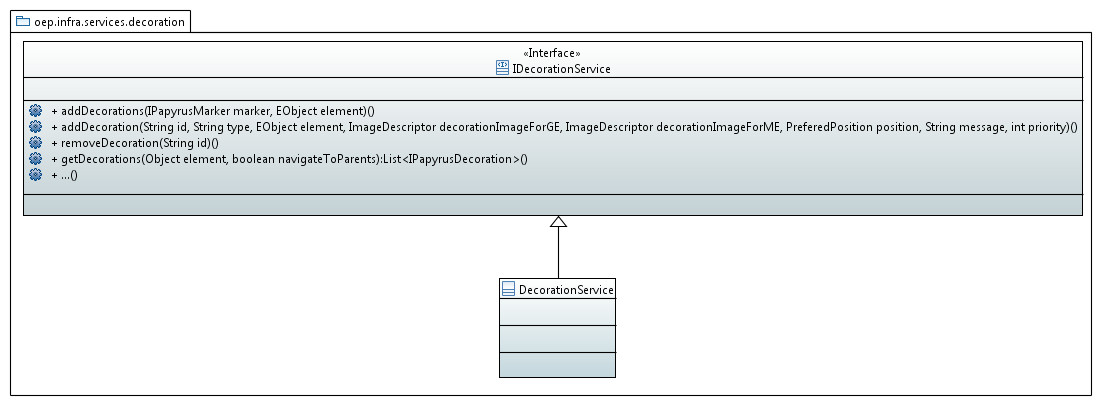

Decoration service permits to manage decoration on EObject. Decorations are added through this service. It provides listener to observe changes. This service can be retrieved with:
DecorationService decorationService = ServiceUtilsForEditPart.getInstance().getService(DecorationService.class, editPart);
IPapyrusMarker provides a protocol for markers that annotates elements with information, often used for problems. It is an analogy of the Eclipse IMarker API for resources in the workspace, to be implemented in order to create its own marker used for custom decoration.

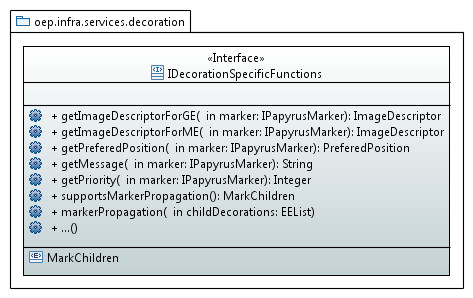

This interface allows to access a set of functions that depends on the decorator type. The objective is that plug-ins for a specific decoration type can implement this interface (via an extension point) to provide the information that depends on the decoration type, notably the used icons, their position, the way how messages are calculated and how decoration might propagate from children to parents. To be implemented in order to create its own decoration.It Is related to a marker through decorationImage extension point.
Provide an ImageDescription for a decoration marker. It allows to link a IDecorationSpecificFunction class to a Papyrus marker through his type.
Identifier: org.eclipse.papyrus.infra.services.decoration.decorationImage
The shape service framework allows to display svg document in the symbol compartment or at a chosen position on the edit part.

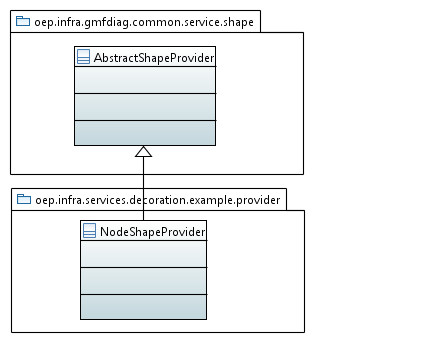

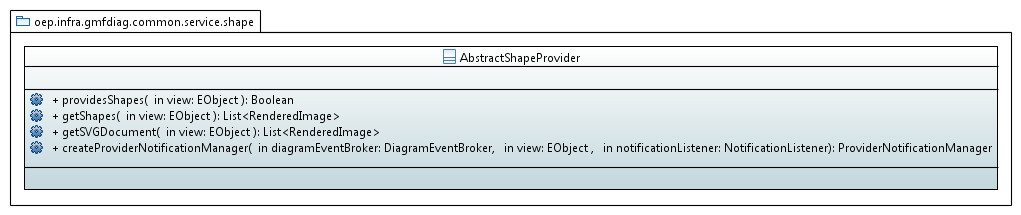

The framework provides a simple abstract provider class in order to add svg shape to edit parts. Only few methods have to be implemented.
To be loaded, implemented shape providers have to be linked through a specific extension point.
To display the shape on the edit parts and to choose the visibility and the position, attributes have to be set on the appearance tab of the properties view.

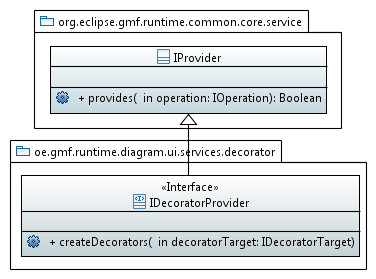

GMF provide a decorator service to display decorations on views. An extension point exists to use to load your custom decorator provider. By default the position of decoration is set according to the direction, but you can customize its location throught a locator(org.eclipse.draw2d.Locator).
Clients providing an extension to the DecoratorService need to create a decorator provider class that implements the IDecoratorProvider interface. IDecoratorProvider is the interface for providers of the decorator service. A decorator provider is responsible for installing its decorators on the decorator targets that it wishes to decorate.
CreateDecoratorsOperation from which the decorator target can be extracted.

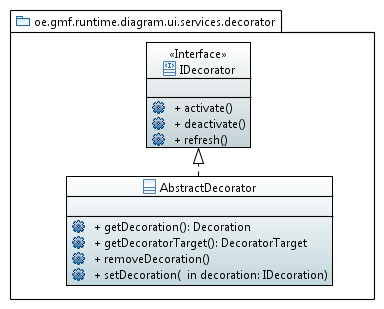

Clients can have their decorator subclass this to inherit utility methods for adding decoration figures.

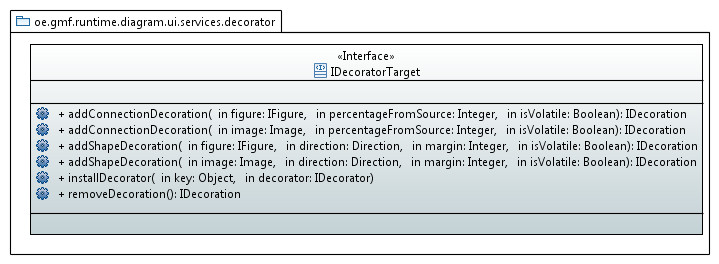

It's the interface of targeted element. It will not implemented by client. Decorator in decorator target have some properties which can be set:
his extension point is used to define decorator providers for the decorator service (org.eclipse.gmf.runtime.diagram.ui.services.decorator). The Decoration Service gives clients the ability to decorate diagram elements with an image or figure.
This part will provide a simple example to use available services to display decorations on edit part according to the conditions described above.
SysML profile will be used as allocation profile. An "allocation table" affects the call behavior to nodes. Nodes can be stereotyped with NodeA and NodeB stereotypes. Depending on the node on which the callBehavior is allocated, the decorator of the callBehavior should change.
With this profile:
Applied on these two nodes:
And with this allocation Table:

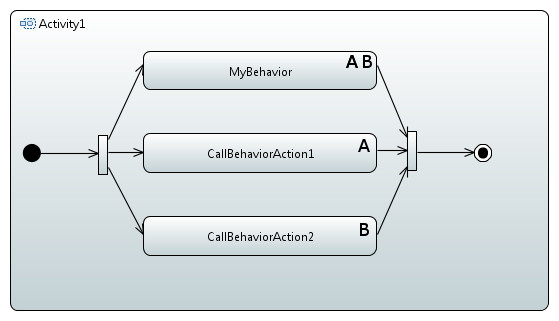

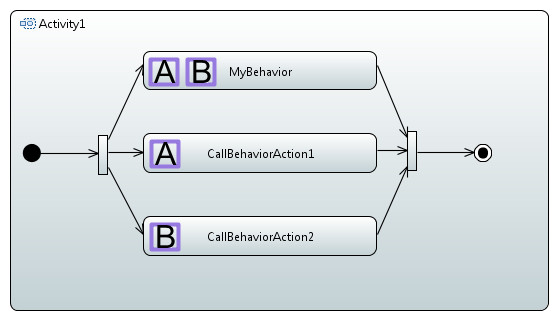

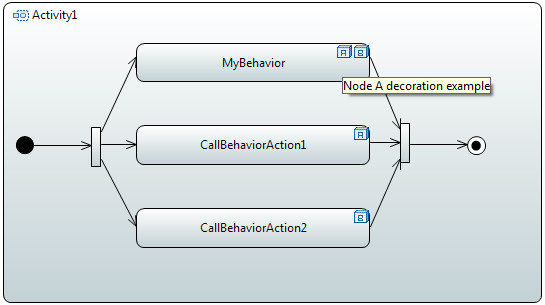

The expected result is:
On this example, we have used 2 markers and one decoration specific function for each marker. The association between markers and decoration are done thanks to a specific extension point. An Edit policy is used to add markers to the decoration Service according to the model context. The edit policy is installed to the right edit parts through an edit policy provider, which is loaded by extension point.

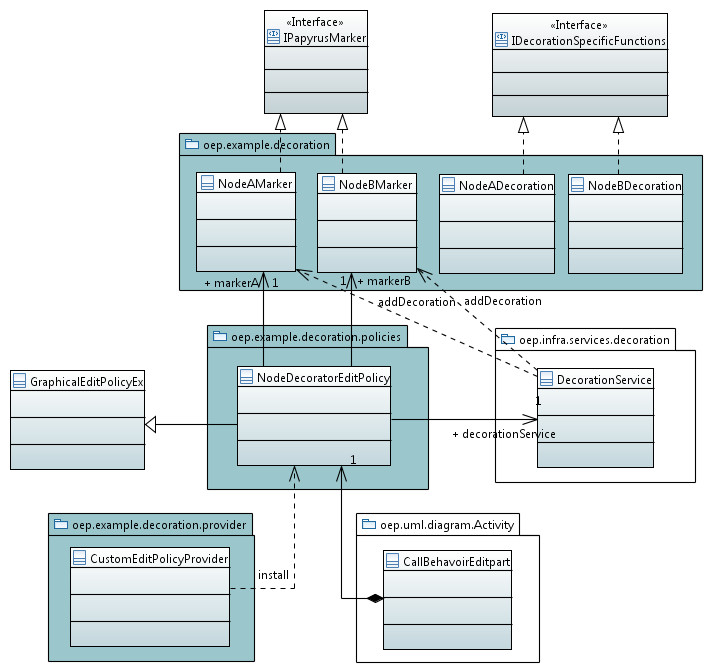

For each type of stereotype NodeA and NodeB, a marker have been implemented with a specific markerType:
public class NodeAMarker implements IPapyrusMarker {
public static final String MARKER_TYPE = "org.eclipse.papyrus.infra.services.decoration.example.NodeA"; //$NON-NLS-1$
public static final String NODE_A_STEREOTYPE = "DecorationExampleProfile::NodeA";//$NON-NLS-1$
protected View notationElement;
public NodeAMarker(final View notationElement) {
this.notationElement = notationElement;
}
@Override
public boolean exists() {
return ExampleUtils.isAllocatedTo((CallBehaviorAction) notationElement, NODE_A_STEREOTYPE);
}
@Override
public String getType() throws CoreException {
return MARKER_TYPE;
}
@Override
public String getTypeLabel() throws CoreException {
return "Node A marker example";
}
...
These markers are added to the DecorationService thanks to an editPolicy applied to the CallBehavoir edit part.
The DecorationService is called in the Activate() method:
@Override
public void activate() {
super.activate();
// TODO install listener
try {
decorationService = ServiceUtilsForEditPart.getInstance().getService(DecorationService.class, getHost());
refresh();
} catch (final ServiceException ex) {
// Ignored; do nothing
}
}
The refresh method adds or removes markers according to the allocated element on the UML element of the edit part:
@Override
public void refresh() {
...
// If the marker already set for nodeA have to be changed.
if (ExampleUtils.isAllocatedTo((CallBehaviorAction) view.getElement(), NodeAMarker.NODE_A_STEREOTYPE) != isNodeAMarked) {
isNodeAMarked = !isNodeAMarked;
if (isNodeAMarked) {
decorationService.addDecoration(getMarkerA(), getView());
} else {
decorationService.removeDecoration(getMarkerA().toString());
}
getHost().refresh();
}
// If the marker for nodeB already set have to be changed
if (ExampleUtils.isAllocatedTo((CallBehaviorAction) view.getElement(), NodeBMarker.NODE_B_STEREOTYPE) != isNodeBMarked) {
isNodeBMarked = !isNodeBMarked;
if (isNodeBMarked) {
decorationService.addDecoration(getMarkerB(), getView());
} else {
decorationService.removeDecoration(getMarkerB().toString());
}
getHost().refresh();
}
}
An edit policy provider is used to install the NodeDecorationEditPolicy to the right edit parts.
public class CustomEditPolicyProvider implements IEditPolicyProvider {
protected String diagramType = org.eclipse.papyrus.uml.diagram.activity.edit.parts.ActivityDiagramEditPart.MODEL_ID;
@Override
public void addProviderChangeListener(final IProviderChangeListener listener) {
}
@Override
public boolean provides(final IOperation operation) {
boolean provide = false;
String currentDiagramType;
// get the element
final EObject referenceElement = ((View) ((CreateEditPoliciesOperation) operation).getEditPart().getModel()).getElement();
// Test if it's a creation operation and the element is a CallBehavoirActino
if ((operation instanceof CreateEditPoliciesOperation) && (referenceElement instanceof CallBehaviorAction)) {
// Get The current diagram type
currentDiagramType = ((View) ((CreateEditPoliciesOperation) operation).getEditPart().getModel()).getDiagram().getType();
// Test if we are on an Activity Diagram
if ((diagramType != null) && (diagramType.equals(currentDiagramType))) {
provide = true;
} else {
provide = false;
}
}
return provide;
}
@Override
public void removeProviderChangeListener(final IProviderChangeListener listener) {
}
@Override
public void createEditPolicies(final EditPart editPart) {
editPart.installEditPolicy(NodeDecoratorEditPolicy.EDIT_POLICY_ROLE, new NodeDecoratorEditPolicy());
}
}

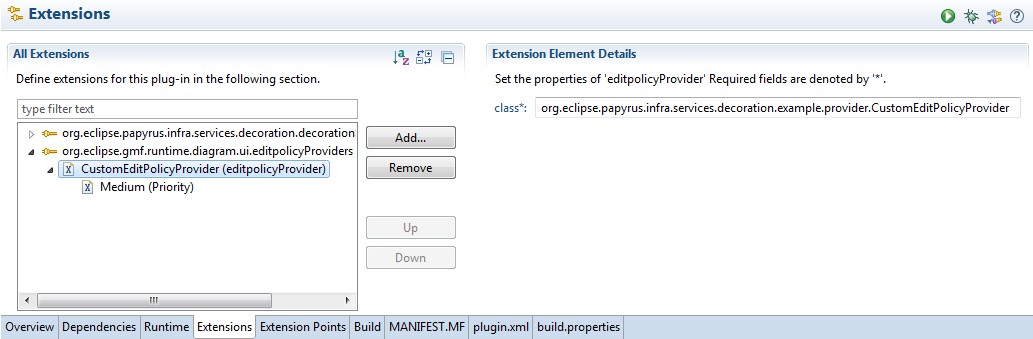

This edit policy provider is installed with the editpolicyProviders extension point:
<extension
point="org.eclipse.gmf.runtime.diagram.ui.editpolicyProviders">
<editpolicyProvider
class="org.eclipse.papyrus.infra.services.decoration.example.provider.CustomEditPolicyProvider">
<Priority
name="Medium">
</Priority>
</editpolicyProvider>
</extension>
The decoration specific function specifies the decoration to be applied on a marked element. It defines the image, the position, the context message of the decoration etc...
public class NodeADecoration implements IDecorationSpecificFunctions {
@Override
public MarkChildren supportsMarkerPropagation() {
// This marker should not be propagated
return null;
}
@Override
public ImageDescriptor getImageDescriptorForGE(final IPapyrusMarker marker) {
return org.eclipse.papyrus.infra.widgets.Activator.getDefault().getImageDescriptor(Activator.ID, "icons/NodeA.gif"); //$NON-NLS-1$
}
@Override
public PreferedPosition getPreferedPosition(final IPapyrusMarker marker) {
return PreferedPosition.NORTH_EAST;
}
@Override
public String getMessage(final IPapyrusMarker marker) {
return "Node A decoration example";
}
@Override
public int getPriority(final IPapyrusMarker marker) {
return 0;
}
}
To associate

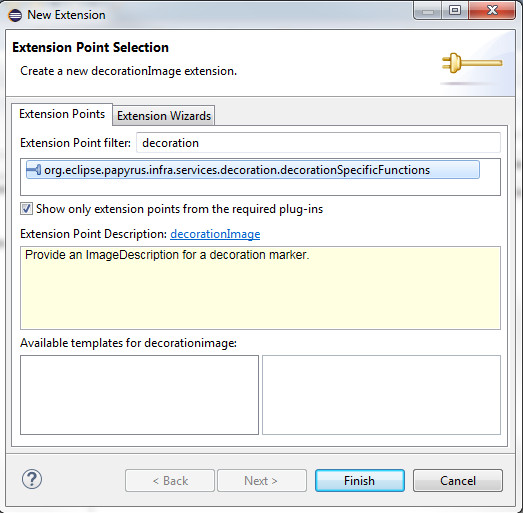

decoration specific function to a marker, an extension point can be used. In the image below the decoration
NodeAdecoration is linked to the marker type defined in the marker NodeAMarker.MARKER_TYPE

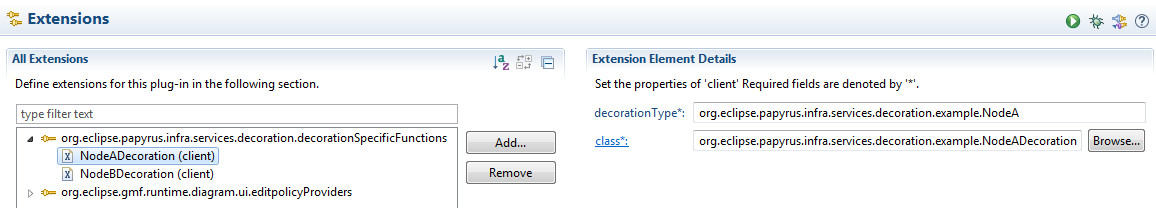

<extension point="org.eclipse.papyrus.infra.services.decoration.decorationSpecificFunctions"> <client class="org.eclipse.papyrus.infra.services.decoration.example.NodeADecoration" decorationType="org.eclipse.papyrus.infra.services.decoration.example.NodeA"> </client> <client class="org.eclipse.papyrus.infra.services.decoration.example.NodeBDecoration" decorationType="org.eclipse.papyrus.infra.services.decoration.example.NodeB"> </client> </extension>
NOTE:this implementation does't work for now due to a NPE. A Patch is in progress to fix that.

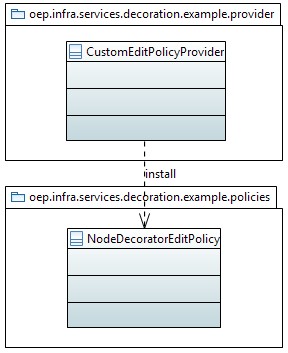

Without marker the architecture of class to implement is less complexe. You only needs the edit policy which will add decoration to the decorationService with the provider which is the same than with marker.
The edit policy is prtty much the same except that we use addDecoration(String id, String type, EObject element, ImageDescriptor decorationImageForGE, ImageDescriptor decorationImageForME, PreferedPosition position, String message, int priority)
So in the refresh methode for NodeB:
...
// If the marker for nodeB already set have to be changed
if (ExampleUtils.isAllocatedTo((CallBehaviorAction) view.getElement(), ExampleUtils.NODE_B_STEREOTYPE) != nodeBMarked) {
nodeBMarked = !nodeBMarked;
if (nodeBMarked) {
// Decoration Without marker
decorationService.addDecoration(
view.getElement().toString(), // $NON-NLS-1$
"NodeBDecoration", //$NON-NLS-1$
view.getElement(),
org.eclipse.papyrus.infra.widgets.Activator.getDefault().getImageDescriptor(Activator.ID, "icons/NodeB.gif"), //$NON-NLS-1$
org.eclipse.papyrus.infra.widgets.Activator.getDefault().getImageDescriptor(Activator.ID, "icons/NodeB.gif"), //$NON-NLS-1$ ,
PreferedPosition.SOUTH_WEST,
"NodeB decoration Without marker",
0);
} else {
decorationService.removeDecoration(view.getElement().toString());
}
getHost().refresh();
}
...
The use of Shape service is done by the implementation of a shape provider which extends AbstractShapeProvider: " NodeShapeProvider". Then " NodeShapeProvider" is activated thanks to the shape provider extension point.
The implementated Shape provder will provide shape according to the same conditions than before.
public class NodeShapeProvider extends AbstractShapeProvider {
// The used SVG files
private static final String ICONS_SYMBOLS_NODE_A_SVG = "/icons/NodeA.svg";//$NON-NLS-1$
private static final String ICONS_SYMBOLS_NODE_B_SVG = "/icons/NodeB.svg";//$NON-NLS-1$
...
@Override
public boolean providesShapes(final EObject view) {
boolean provide = false;
if (view instanceof View) {
final EObject element = ((View) view).getElement();
// Test if the element is a CallBehavoirAction and if a stereotyped node is allocated to it.
if (element instanceof CallBehaviorAction
&& (ExampleUtils.isAllocatedTo((CallBehaviorAction) element, ExampleUtils.NODE_A_STEREOTYPE)
|| ExampleUtils.isAllocatedTo((CallBehaviorAction) element, ExampleUtils.NODE_B_STEREOTYPE))) {
provide = true;
} else {
provide = false;
}
}
return provide;
}
@Override
public List<RenderedImage> getShapes(final EObject view) {
if (providesShapes(view)) {
// Gets the SVG document: here NodeA.svg or/and NodeB.svg
final List<SVGDocument> documents = getSVGDocument(view);
if (documents != null) {
final List<RenderedImage> result = new LinkedList<RenderedImage>();
for (final SVGDocument document : documents) {
try {
// Adds the shape to result
result.add(renderSVGDocument(view, document));
} catch (final IOException ex) {
// Do nothing
}
}
return result;
}
}
return null;
}
@Override
public List<SVGDocument> getSVGDocument(final EObject view) {
final List<SVGDocument> svgDocuments = new ArrayList<SVGDocument>();
if (providesShapes(view)) {
final CallBehaviorAction callBehaviorAction = (CallBehaviorAction) ((View) view).getElement();
// If allocation corresponding adds SVG document for Node A
if (ExampleUtils.isAllocatedTo(callBehaviorAction, ExampleUtils.NODE_A_STEREOTYPE)) {
// Get the SVG document
final SVGDocument document = getSVGDocument(URI.createPlatformPluginURI(Activator.ID + ICONS_SYMBOLS_NODE_A_SVG, true).toString());
if (document != null) {
svgDocuments.add(document);
}
}
// If allocation corresponding adds SVG document for Node B
if (ExampleUtils.isAllocatedTo(callBehaviorAction, ExampleUtils.NODE_B_STEREOTYPE)) {
// Get the SVG document
final SVGDocument document = getSVGDocument(URI.createPlatformPluginURI(Activator.ID + ICONS_SYMBOLS_NODE_B_SVG, true).toString());
if (document != null) {
svgDocuments.add(document);
}
}
}
return svgDocuments;
}
...
}

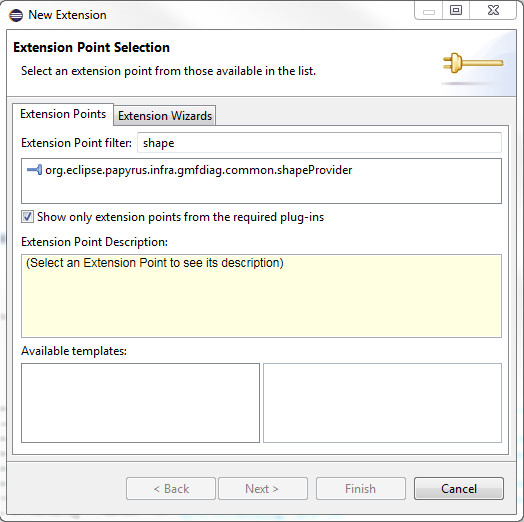

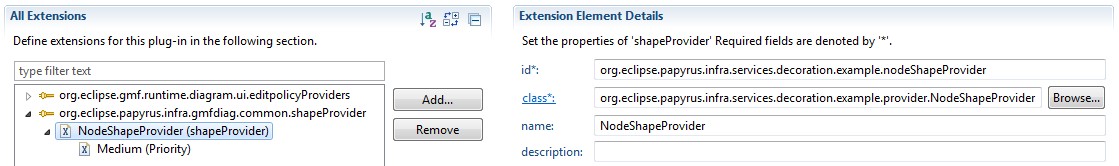

To activate the shape provider we use the Shape Provider Extension Point:
<extension point="org.eclipse.papyrus.infra.gmfdiag.common.shapeProvider">
<shapeProvider
class="org.eclipse.papyrus.infra.services.decoration.example.provider.NodeShapeProvider"
id="org.eclipse.papyrus.infra.services.decoration.example.nodeShapeProvider"
name="NodeShapeProvider">
<Priority
name="Medium">
</Priority>
</shapeProvider>
</extension>

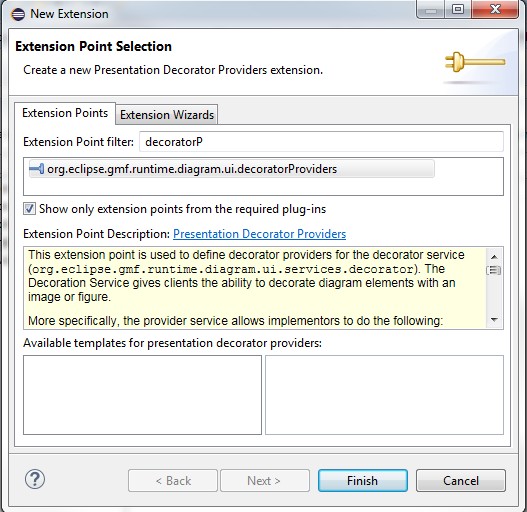

GMF Decorator framework can be implemented by many ways. The choice made here is to use Figure as decorator which contains icons. This will permits to position icons on the figure. The to locate the figure in the target à specific locator will be implemented. This permits to have a better control of the location of decoration. A tootip will be also added.

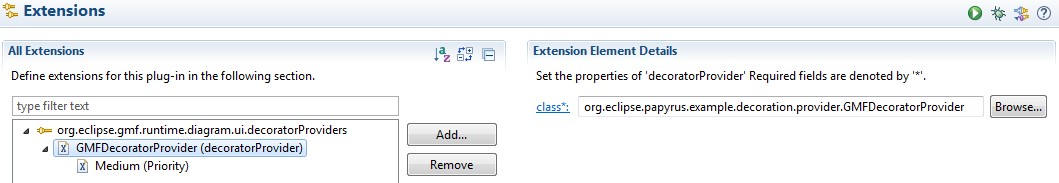

To implement it we create a provider loaded through the specific extension point. The provider will install the node decorator which use the specific locator.
/**
* Example of provider for display decoration using gmf decorator framework.
*/
public class GMFDecoratorProvider extends AbstractProvider implements IDecoratorProvider {
// The key of the installed decorator
private static final String GMF_DECORATION_KEY = "gmf_decoration_example_key"; //$NON-NLS-1$
@Override
public boolean provides(final IOperation operation) {
boolean provide = false;
// it needs to be a CreateDecoratorsOperation
if (operation instanceof CreateDecoratorsOperation) {
final IDecoratorTarget decoratorTarget = ((CreateDecoratorsOperation) operation).getDecoratorTarget();
final View view = decoratorTarget.getAdapter(View.class);
// Test if the decoratorTarget element is a CallBehavoirAction
if (view != null && ActivityDiagramEditPart.MODEL_ID.equals(UMLVisualIDRegistry.getModelID(view)) && view.getElement() instanceof CallBehaviorAction) {
provide = true;
} else {
provide = false;
}
}
return provide;
}
@Override
public void createDecorators(final IDecoratorTarget decoratorTarget) {
final View node = decoratorTarget.getAdapter(View.class);
if (node != null) {
// Install the decorator
decoratorTarget.installDecorator(GMF_DECORATION_KEY, new NodeDecorator(decoratorTarget));
}
}
}

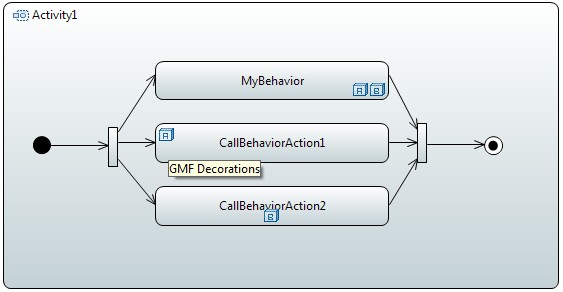

The refresh methods will permit to adds the decoration.
...
@Override
public void refresh() {
//First of all, we remove decoration
removeDecoration();
final EditPart editPart = (EditPart) getDecoratorTarget().getAdapter(EditPart.class);
if (editPart instanceof NodeEditPart) {
// Get the figure of the editpart
final IFigure editPartFigure = ((GraphicalEditPart) editPart).getFigure();
// Get the view of the editpart
final View view = (View) editPart.getModel();
// Create a main figure with a flow layout. It will contains icons.
final IFigure figure = new Figure();
final FlowLayout flowLayout = new FlowLayout();
flowLayout.setHorizontal(true);
flowLayout.setMinorSpacing(0);
figure.setLayoutManager(flowLayout);
// If for nodeA is allocated to the call behavior
if (ExampleUtils.isAllocatedTo((CallBehaviorAction) view.getElement(), ExampleUtils.NODE_A_STEREOTYPE)) {
// Create child figure
final ScaledImageFigure imageFigureA = getImageNode("icons/NodeA.gif");//$NON-NLS-1$
// Add it to main figure of the decoration
figure.add(imageFigureA);
}
// If for nodeA is allocated to the call behavior
if (ExampleUtils.isAllocatedTo((CallBehaviorAction) view.getElement(), ExampleUtils.NODE_B_STEREOTYPE)) {
// Create child figure
final ScaledImageFigure imageFigureB = getImageNode("icons/NodeB.gif");//$NON-NLS-1$
// Add it to main figure of the decoration
figure.add(imageFigureB);
}
// Get MapMode
final IMapMode mm = MapModeUtil.getMapMode(editPartFigure);
// Set the size of the decorator figure
figure.setSize(mm.DPtoLP(IMAGE_WIDTH * figure.getChildren().size()) + 2, mm.DPtoLP(IMAGE_HEIGHT));
// Get the direction/position of the decoration. Direction will be takes from shape direction in appearance tab of properties view.
final Direction direction = getDirection(view);
// Instantiate a custom locator to have decoration inside the figure.
final Locator locator = new InsideDirectedLocator(editPartFigure, direction);
// Set the decoration with the custom locator.
setDecoration(getDecoratorTarget().addDecoration(figure, locator, false));
//Set the tool tip of the decoration
getDecoration().setToolTip(new Label("GMF Decorations"));
}
}
the Figure is get with the following method:
/**
* Create a ScaledImageFigure for a specific relative location of a image.
*
* @param imageLocation
* @return the image.
*/
private ScaledImageFigure getImageNode(final String imageLocation) {
final ImageDescriptor imageDescriptor = org.eclipse.papyrus.infra.widgets.Activator.getDefault().getImageDescriptor(Activator.ID, imageLocation);
final Image image = imageDescriptor.createImage();
final ScaledImageFigure imageFigure = new ScaledImageFigure();
imageFigure.setImage(image);
imageFigure.setSize(IMAGE_WIDTH, IMAGE_HEIGHT);
return imageFigure;
}
If you don't want to use a custom locator use instead of addDecoration. A negative margin will put the decoration inside and a positive will put it outside.
setDecoration(getDecoratorTarget().addShapeDecoration(figure, direction, -1, false));
To activate the GMF Decorator Provider we use the Extension Point org.eclipse.gmf.runtime.diagram.ui.decoratorProviders :
<extension
point="org.eclipse.gmf.runtime.diagram.ui.decoratorProviders">
<decoratorProvider
class="org.eclipse.papyrus.example.decoration.provider.GMFDecoratorProvider">
<Priority
name="Medium">
</Priority>
</decoratorProvider>
</extension>
The plugin of this example can be retrieved in the Papyrus git code repository here or imported in File>New>Others...>Examples>Papyrus Example>Decoration Services Examples.
