Requirements

AddNewChild (id=newChild001):

Papyrus shall add in the menu new child for new customized elements by using extended type

HideElement (id=newChild002):

Papyrus shall not display all UML or DSML element creation

newChildFromProfile (id=newChild003):

Papyrus shall add the creation of new element from a subset of profile

newChildMenuDisplay (id=newChild004):

Papyrus shall be able to associate icons to folder or creation menu

RoleAndElementCreation (id=newChild005):

When an element can be created from several roles for a container, Papyrus shall let the possibility to choose the role or to let to the possibility to be created from all roles.

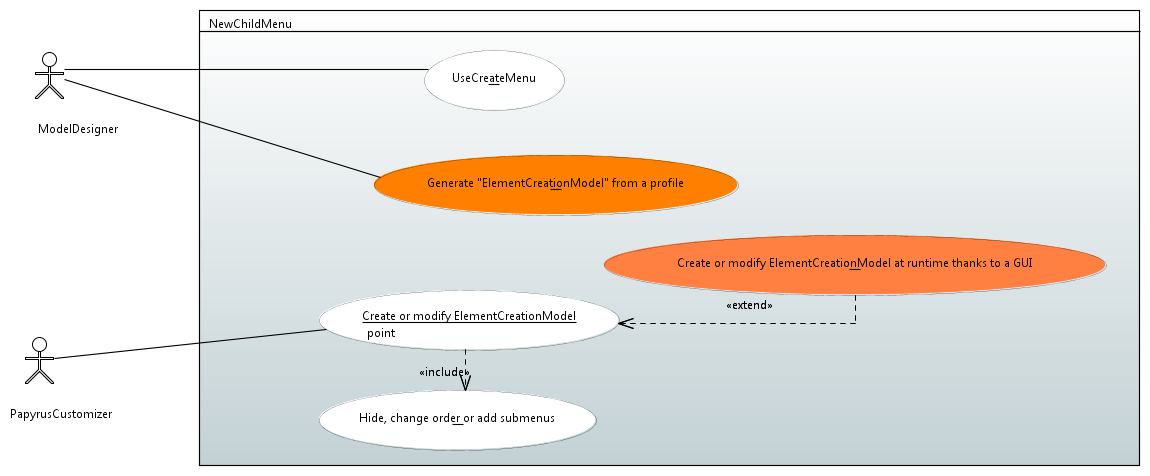

Use Cases

UseCreateMenu

The Papyrus User shall use this functionality from the model explorer in order to create elements in the model. He can decide to display or not this element creation.

How to

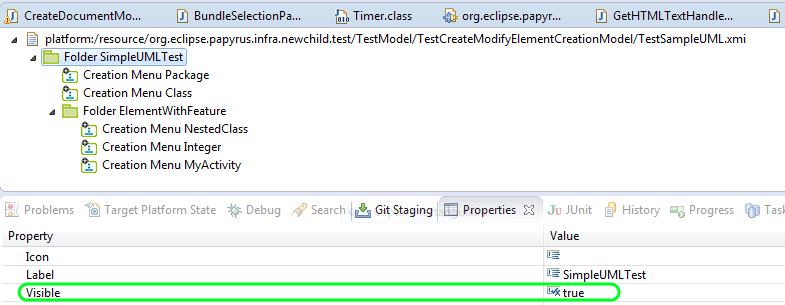

In order to not display a menu, a user can edit the model that represents the creation menu and set the attribute visibility to false.

Create or modify ElementCreationModel

An advanced User is able to create or modify creation menu. This menu is a model that can be edited

How to

An advanced user can contribute to the menu by adding a new plugin that contains:

• a xmi file that represents a creation menu. The model must be an instance of org.eclipse.papyrus.infra.newchild/resource/elementCreationMenuModel.ecore. It contains

  • CreationMenu

    • It corresponds to a menu

    • The ElemenTypeIDRef corresponds a reference to the element Type.

    • The role can be filled in order to specify the role play by the element.

    • If displayAllRole is set to true, it displays all roles played by the element if the number of roles is greater than 1. By default this property is true;

  • Folder

    • It is possible to add owns label an icon.

  • Visibility to specify if the folder is visible.

• a reference to an extension point, to specify that papyrus must take in account this file to display the menu


<extension
         point="org.eclipse.papyrus.infra.newchild">
      <menuCreationModel
            model="YourCreationMenu.xmi">
      </menuCreationModel>
</extension>

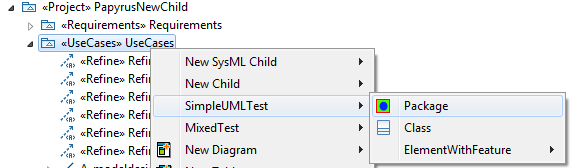

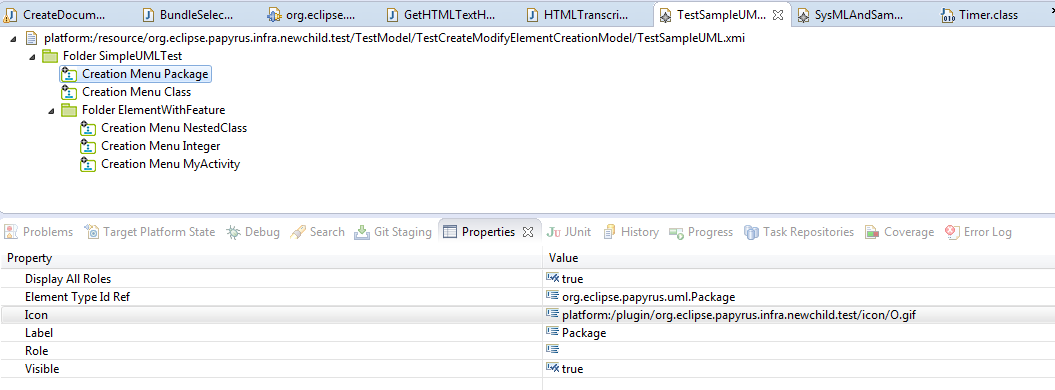

In the following example, a menu creation for a package is presented. This menu is contained in the folder SimpleUMLTest. We have associated an image for this menu.

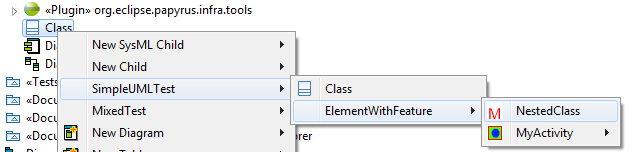

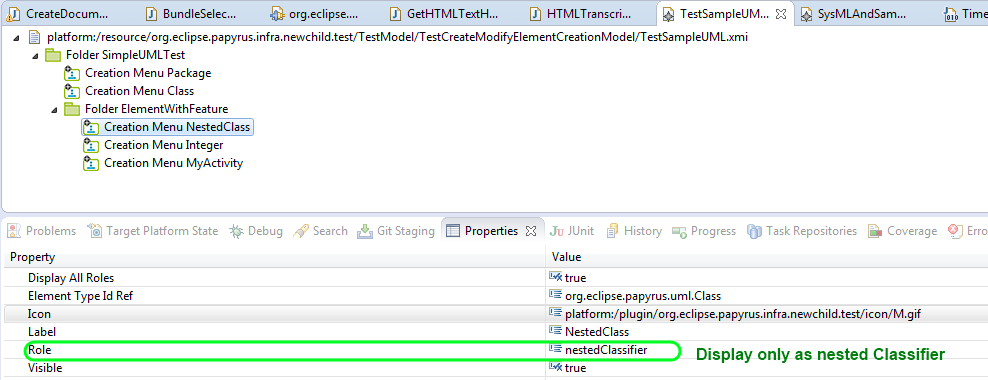

In this following example, a creation menu will be specified to allow creation of nested classifier. That 's why the role "nestedClassifier" is precised. The label for this creation is "nestedClass"

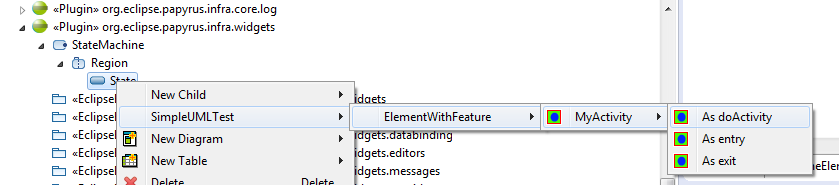

In the following example a creation menu is created for activities. In this case, all roles are displayed. Thanks to this, when we want to associate an activity to a state, 3 roles are proposed.

Generate "ElementCreationModel" from a profile

From a stereotyped profile, a model of new child menu can be generated. For example a user after designing a profile, want to have a dedicated menu from this profile/ For the moment this function is not implemented.

Hide, change order or add submenus

The User can modify the creation menu by adding submenus: order about new child menu, precise if the role must be displayed.

How to

It only needed to change the order of element in the corresponding creation menu model

Create or modify ElementCreationModel at runtime thanks to a GUI

A user can edit a the model that represents the creation menu at runtime for papyrus thanks to a dedicated UI. For the moment this function is not implemented.
