Prerequisites

To benefit from these features, you must install the Papyrus Toolsmiths called Papyrus Toolsmiths tools as shown on this snapshot

How To Create a TableConfiguration From a Table?

1. Create a new Papyrus Project
2. Create a new Table
   1. To create a configuration for a flat or a tree table, we recommend to create a Generic Tree Table.
   2. To create a configuration for a matrix table, we recommend to create a Relationship Generic Matrix.
3. Configure your table.
4. Export your table Right-Click > Export As Table Configuration or in Eclipse Menu File > Export > Papyrus > Export As Table Configuration, then follow the wizard.

Description of the Wizard

• Optional page:
  • If your configured table is not a Generic Tree Table or a Relationship Generic Matrix, a warning page will be displayed

You can cancel or continue after this page.

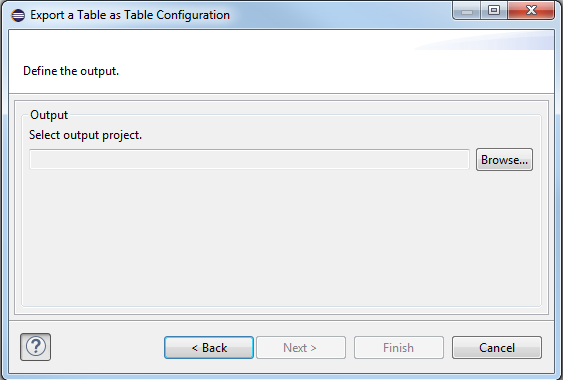

• First page:
  • you must select an existing plugin as output of the table configuration file

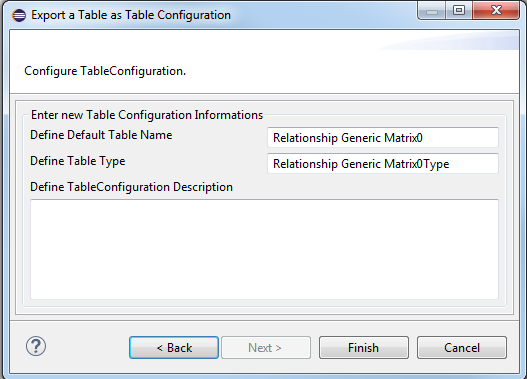

• Second page:
  • You must define the name and the type of your new table configuration. The description is not mandatory.

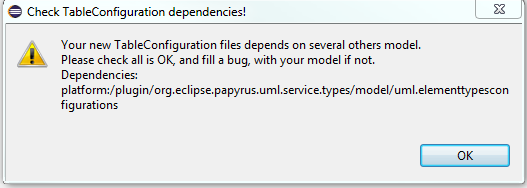

After clicking on Finish, in some case, we open a dialog, when we think the created TableConfiguration references others files which are not expected. In this case, we advice you to check them manually and fill us a bug if required.

Description of the result

• a new nattableconfiguration file has been created in the new folder tableConfiguration,
• the extension point org.eclipse.papyrus.infra.nattable.configuration in the plugin.xml file has been filled,
• a folder icons has been created. It owns the icon to use for the new table,
• the following dependencies have been added in the MANIFEST.MF file:
  • org.eclipse.papyrus.infra.nattable
  • If you use your new configuration in a RCP, don't forget, to include these plugins to your table feature:
    • org.eclipse.papyrus.infra.nattable.common (required to get the table editor),
    • org.eclipse.papyrus.infra.nattable.properties (to get Table Properties View),
    • org.eclipse.papyrus.uml.nattable (required for UML table),
    • org.eclipse.papyrus.uml.nattable.matrix (required for Matrix),
    • org.eclipse.papyrus.uml.nattable.properties (required for Matrix Properties View).
• the files and folders to include to the binary build have been added to the build.properties file.

How to contribute easily a table configuration into an existing Architecture Framework file?

• Import your plugin owning the Architecture Framework file to contribute in your current workspace (we use it at the end),
• Launch a new Eclipse Runtime (required to avoid ../../ in the file),
• Import in this runtime (without making a copy) your plugin owning your nattableconfiguration file,
• Import in this runtime (without making a copy) your plugin owning the architecture file to edit,
• Open the architecture file,

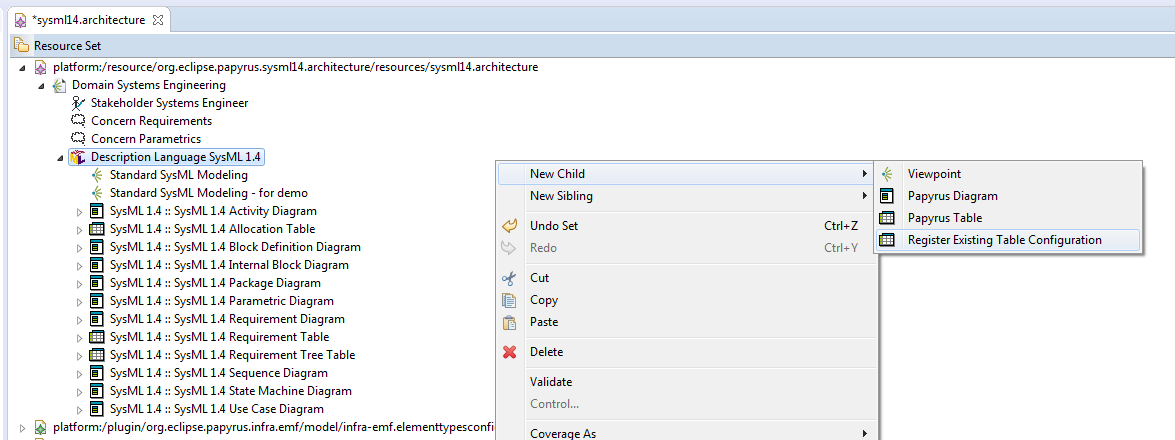

• Select a Description Language element, then Right Click > New Child > Register Exiting Table Configuration,

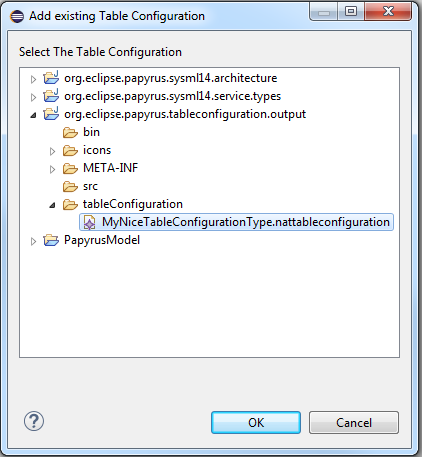

• Select the nattableconfiguration file to register using the open Dialog

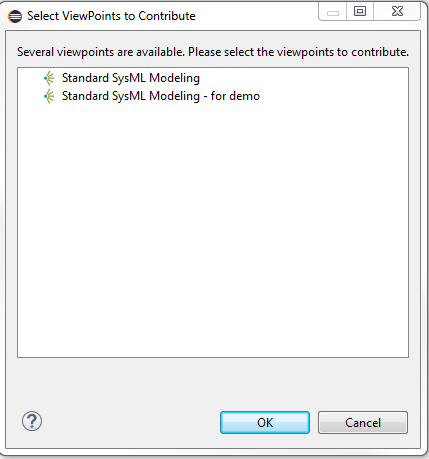

• If several viewpoints are declared for your Description Language, a second dialog is open. You must select the viewpoint(s) to contribute,

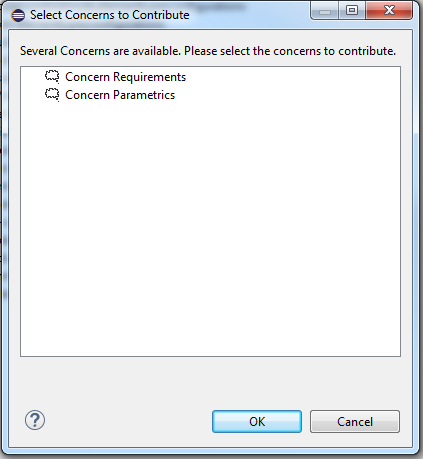

• If several Concerns are declared for your Architecture Domain, a third dialog is open. You must select the concern(s) to contribute,

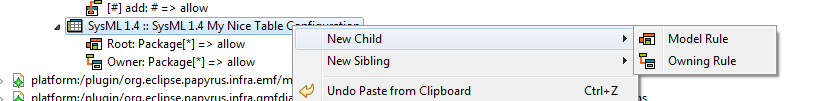

• You must add rules to the created table configuration (define the type of allowed owner and root for the table creation),

• Save the architecture file,
• Close your Eclipse Runtime,
• Update the Architecture Framework project in the first Eclipse instance,
• Relaunch the Eclipse Runtime,
• Enjoy! Your new table is now registered in your viewpoint.
