Diagram Preferences

Many preferences are available for the diagrams. This page will be completed as arises. The Papyrus diagrams preferences are available doing Window > Preferences > Papyrus > Diagrams. Under the Diagram page, you will found each Papyrus Diagram with each preferences.

The page for the diagram preferences:

Connection Group

Connection Bendpoints

This group provides the preferences concerning the connections' bendpoints.

• Draw Common Bendpoints
  • This preference is only available on the page Window > Preferences > Papyrus > Diagrams because it is applied to all existing diagrams.
  • This preference allows to draw plain circle at the beginning and ending of a connection segment shared between several link representing the same type of UML Element and connected to the same source or target.
  • This preference is not available through the CSS.
  • This preference is set to false by default.
  • Known trouble:
    • print a diagram as image is not able to render the drawn bendpoints

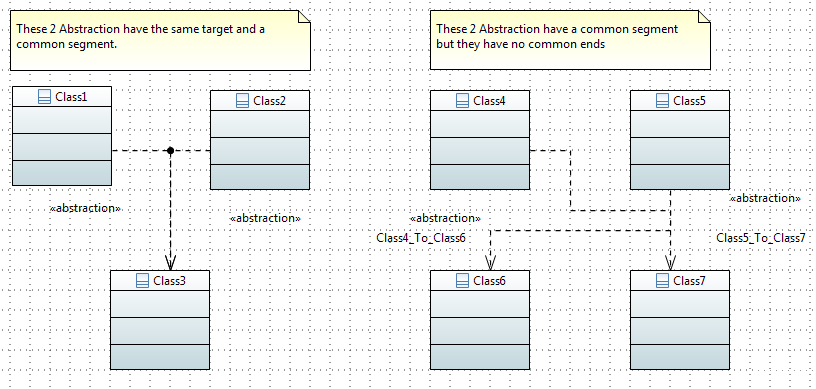

  • Example of represented common bendpoints:
